Removal And Installation: Removal

  1. Remove center console side finisher LH and center console side finisher RH. Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS .
  2. Remove cup holder assembly. Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS .

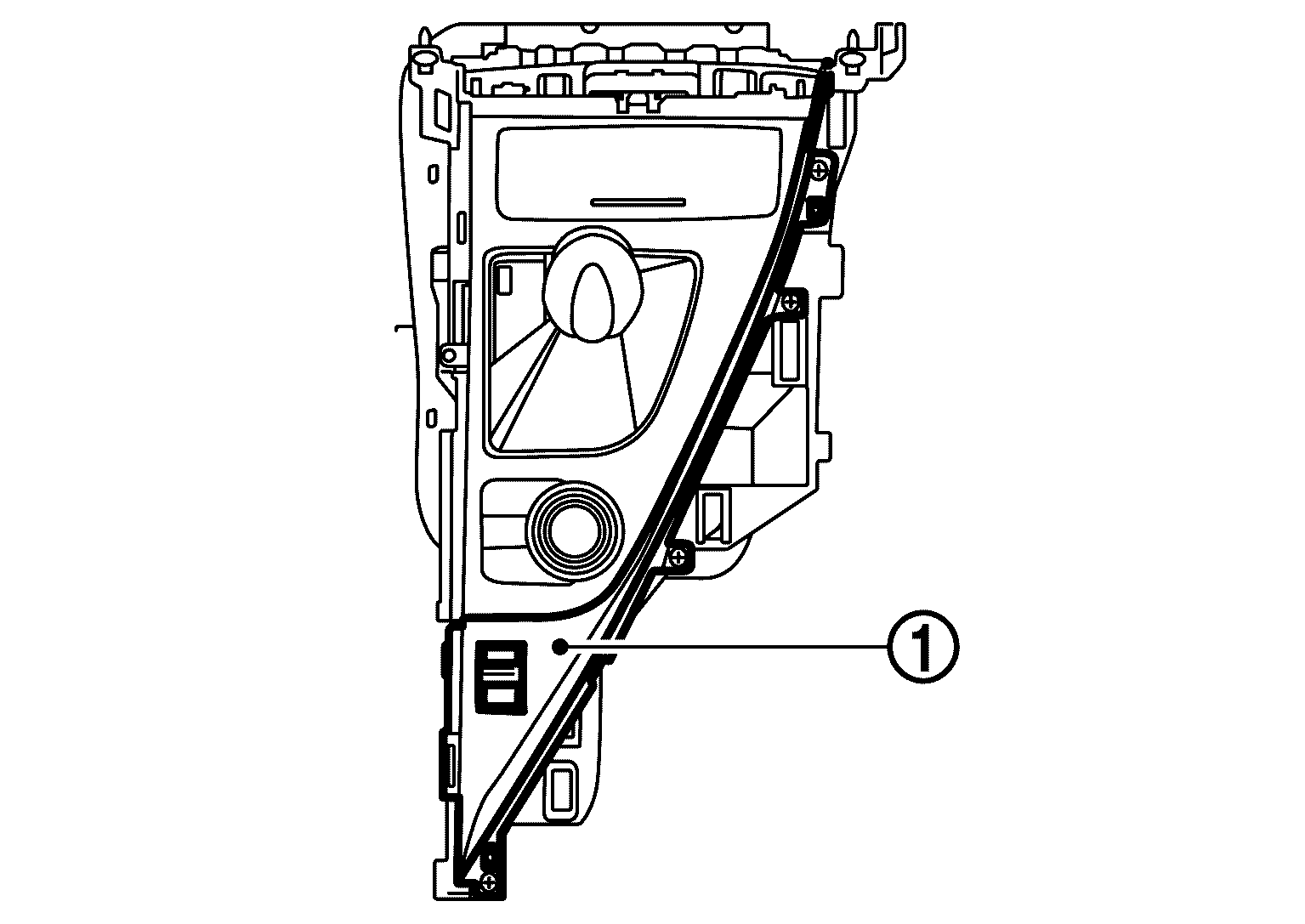

  3. Remove fixing screw, and then remove finisher WHITE-1 .
    G09161994Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect harness connector from drive mode select switch.
  5. Remove drive mode select switch fixing screw, and then remove drive mode select switch.
