Exploded View With Torque Specifications

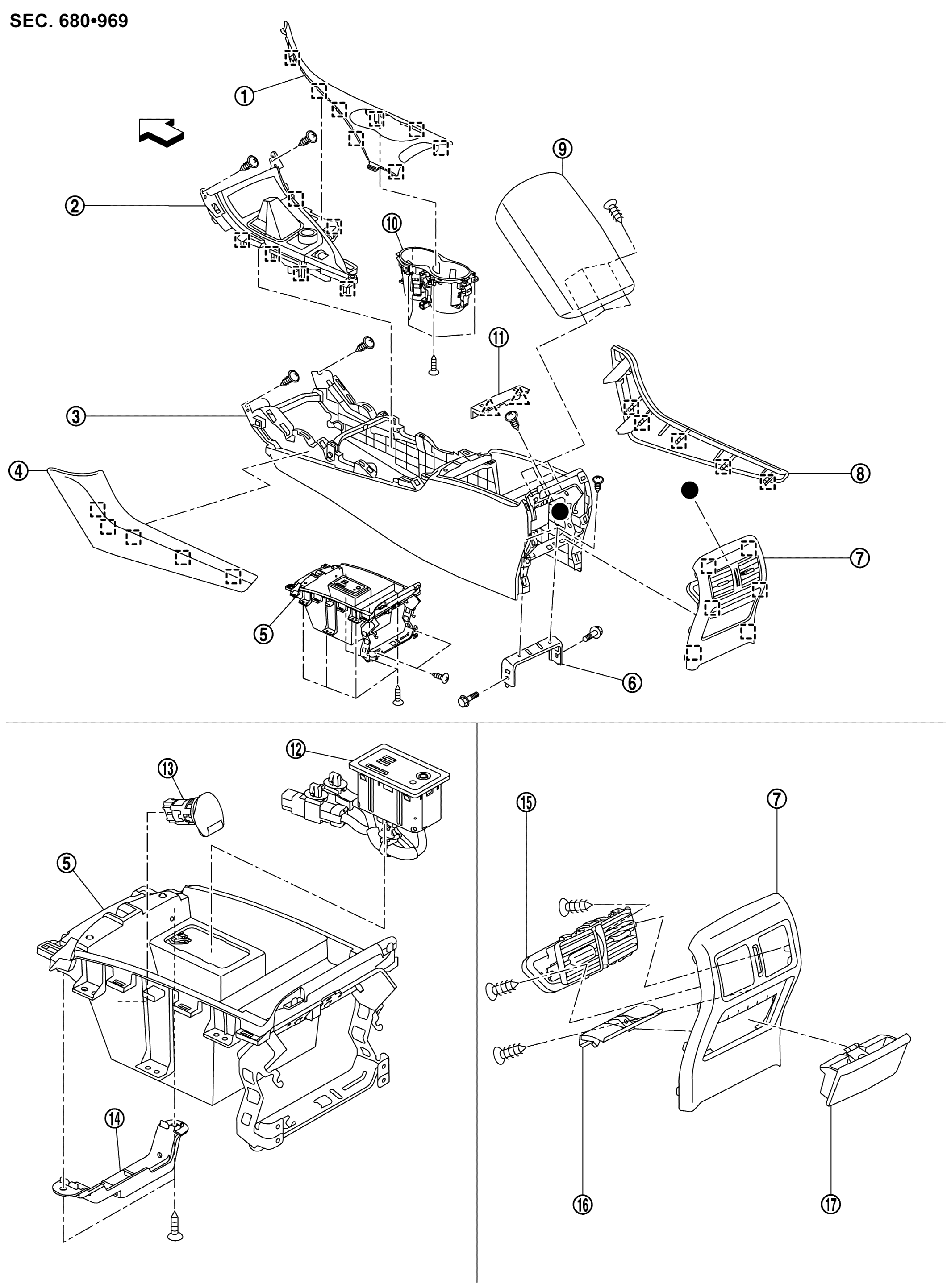

CENTER CONSOLE ASSEMBLY

Courtesy of NISSAN NORTH AMERICA, INC.

	Console upper finisher		Console finisher assembly		Center console assembly
	Center console side finisher LH		Console box assembly		Console rear bracket
	Console rear finisher assembly		Center console side finisher RH		Console lid assembly
	Cup holder assembly		Console mask		External data input box
	Power socket assembly		Console bracket		Rear ventilator grille
	Rear ashtray console bracket		Rear ashtray console
	: Pawl
	: Metal clip
	: Vehicle front
: Indicates that the part is connected at points with same symbol in actual vehicle.

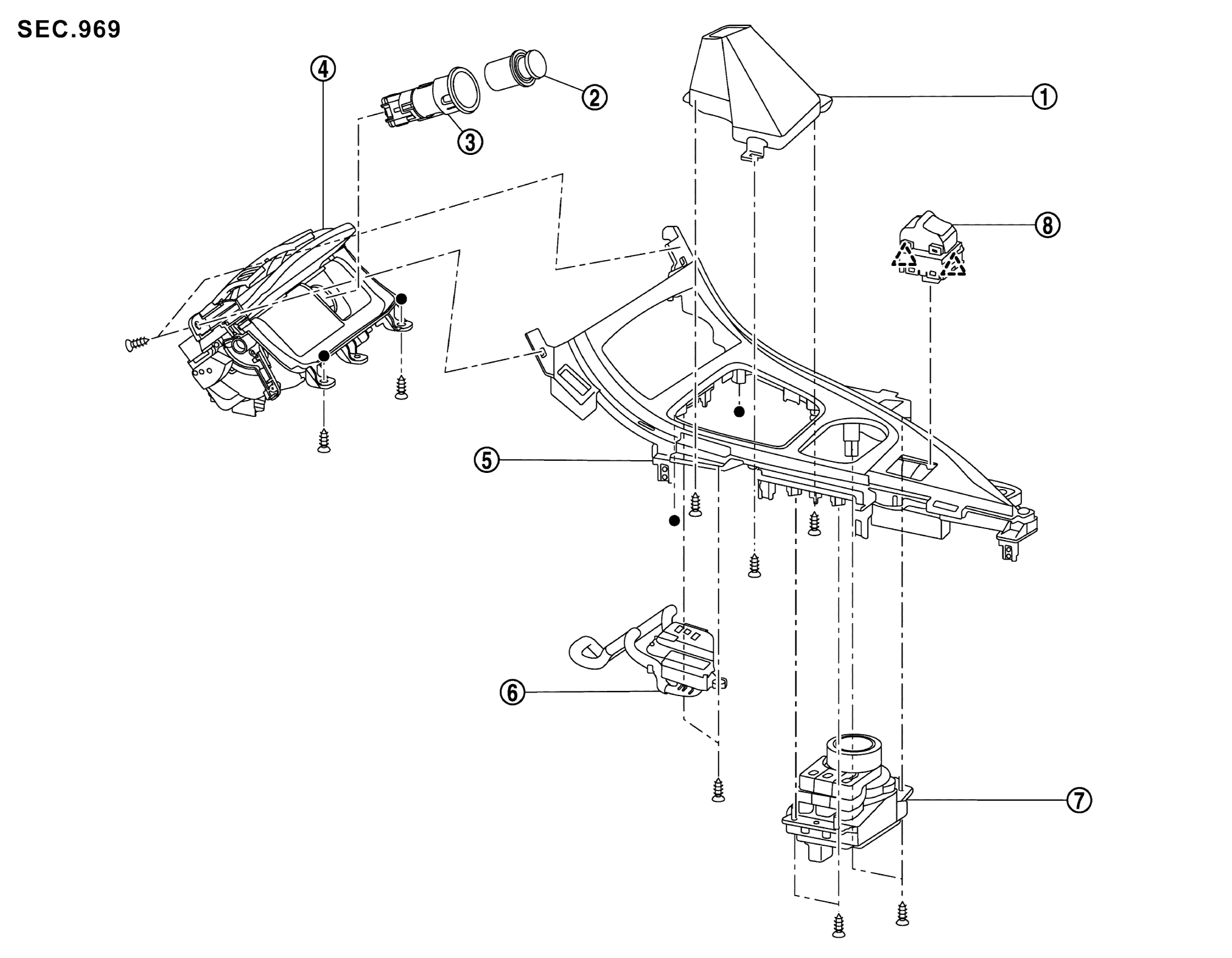

CONSOLE FINISHER ASSEMBLY

Courtesy of NISSAN NORTH AMERICA, INC.

	Console finisher boot		Cap		Power socket assembly
	Console front pocket assembly		Console finisher assembly		Selector lever position indicator
	Drive mode select switch		Multifunction switch
	: Pawl
: Indicates that the part is connected at points with same symbol in actual vehicle.
