Component Parts Location

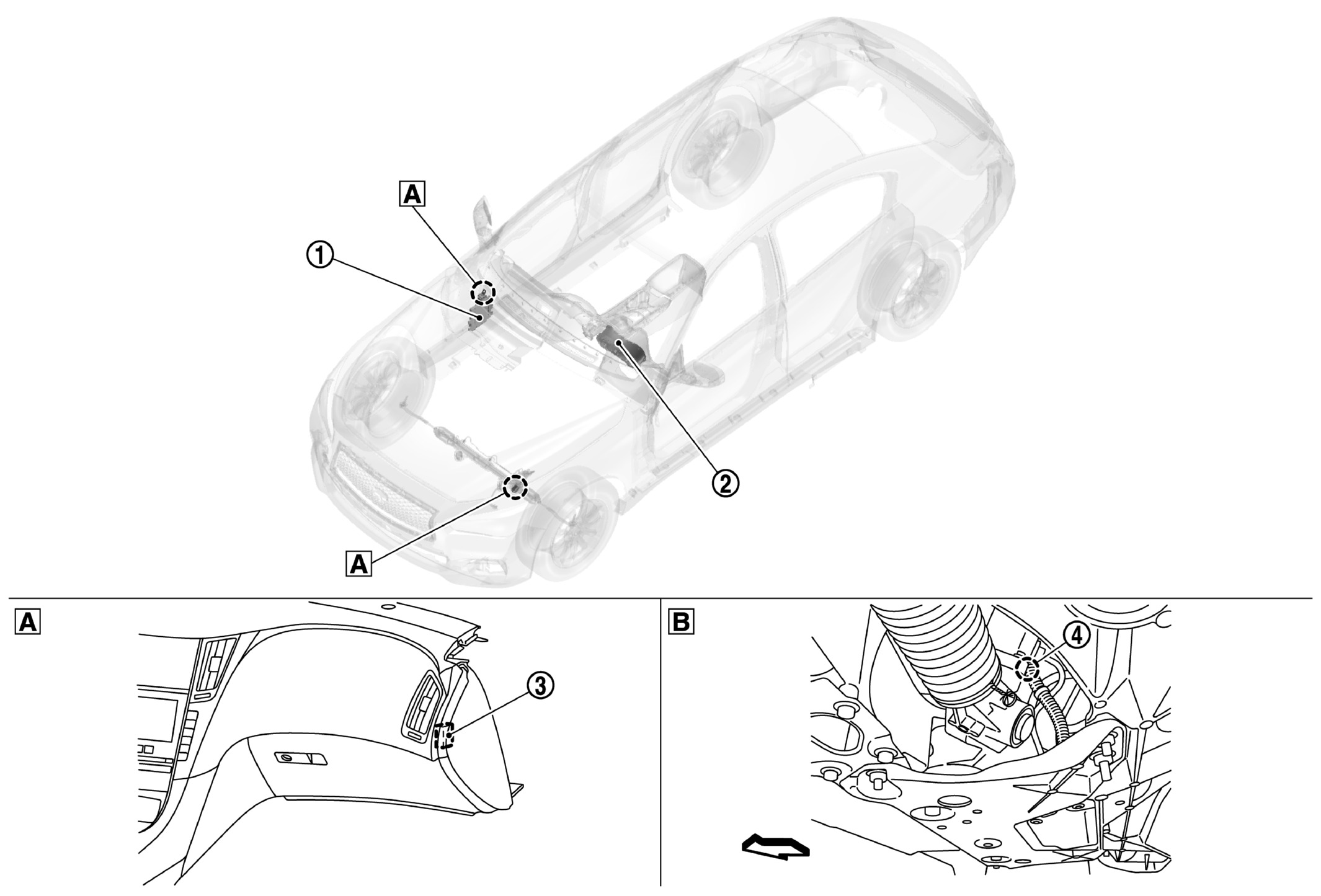

Fig 1: Steering Control System (Vehicle Speed Sensitive P/S) Component Parts Location
GNSJSGIA1254ZZ-254Courtesy of NISSAN NORTH AMERICA, INC.
  At the back of glove box assembly   Steering gear assembly
: Vehicle front
No. Component Function
  ECM
  • Transmits the following signal to power steering control unit.
    • Engine speed signal
  • For detailed installation location, refer to COMPONENT PARTS LOCATION .
  Combination meter
  • Transmits the following signal to power steering control unit.
    • Vehicle speed signal
  • For detailed installation location, refer to COMPONENT PARTS LOCATION .
  Power steering control unit POWER STEERING CONTROL UNIT
  Power steering solenoid valve POWER STEERING SOLENOID VALVE
