Power Steering Solenoid Valve

Power steering solenoid valve controls the power steering oil pressure in the gear housing assembly.

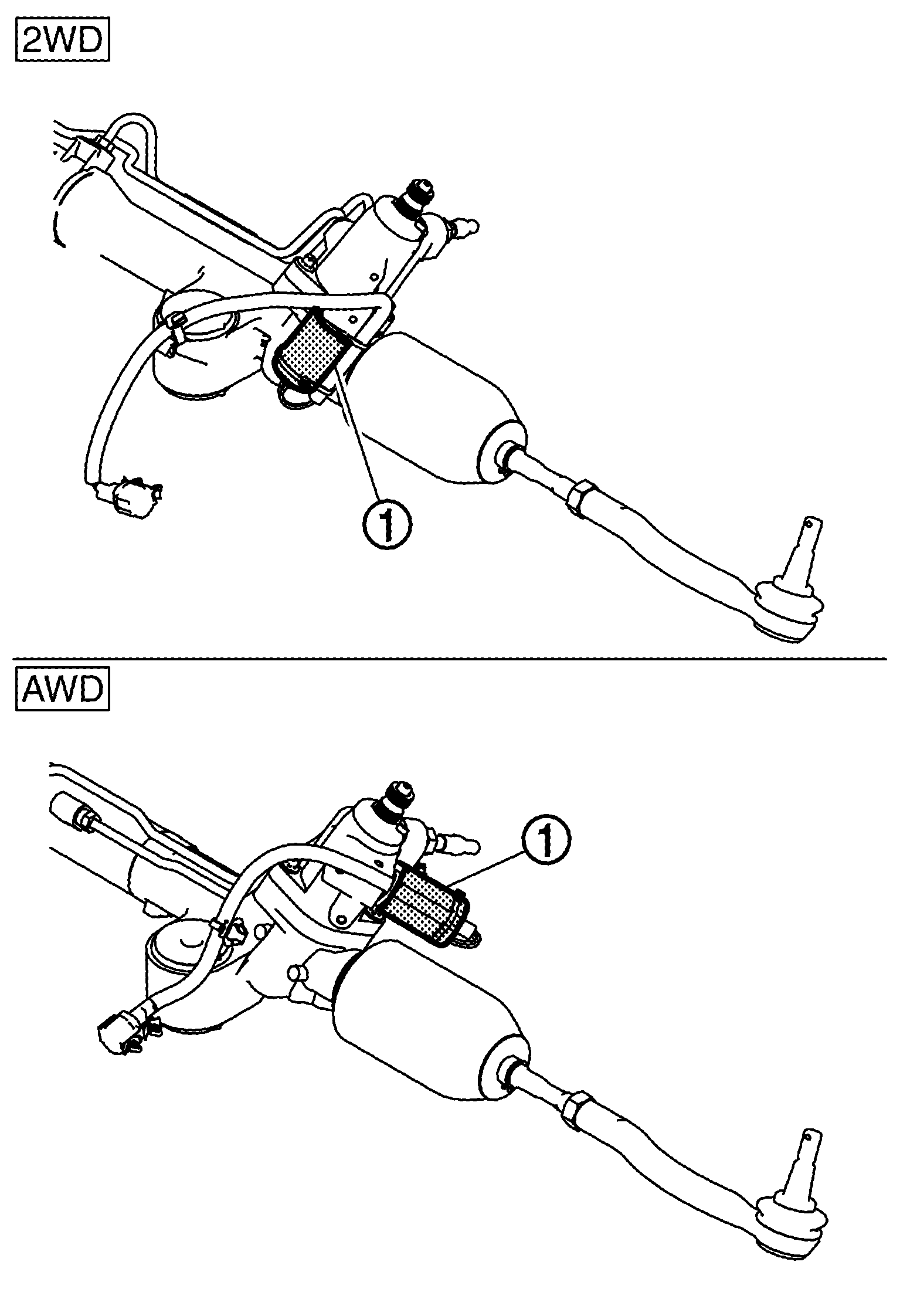

Fig 1: Identifying Power Steering Solenoid Valve
G09159364Courtesy of NISSAN NORTH AMERICA, INC.
