Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove liquid tank. Refer to "EXPLODED VIEW ".
  2. Fix the liquid tank (1) using a vise (A). Remove the refrigerant pressure sensor (2) using a wrench (B).
CAUTION: Be careful not to damage liquid tank.

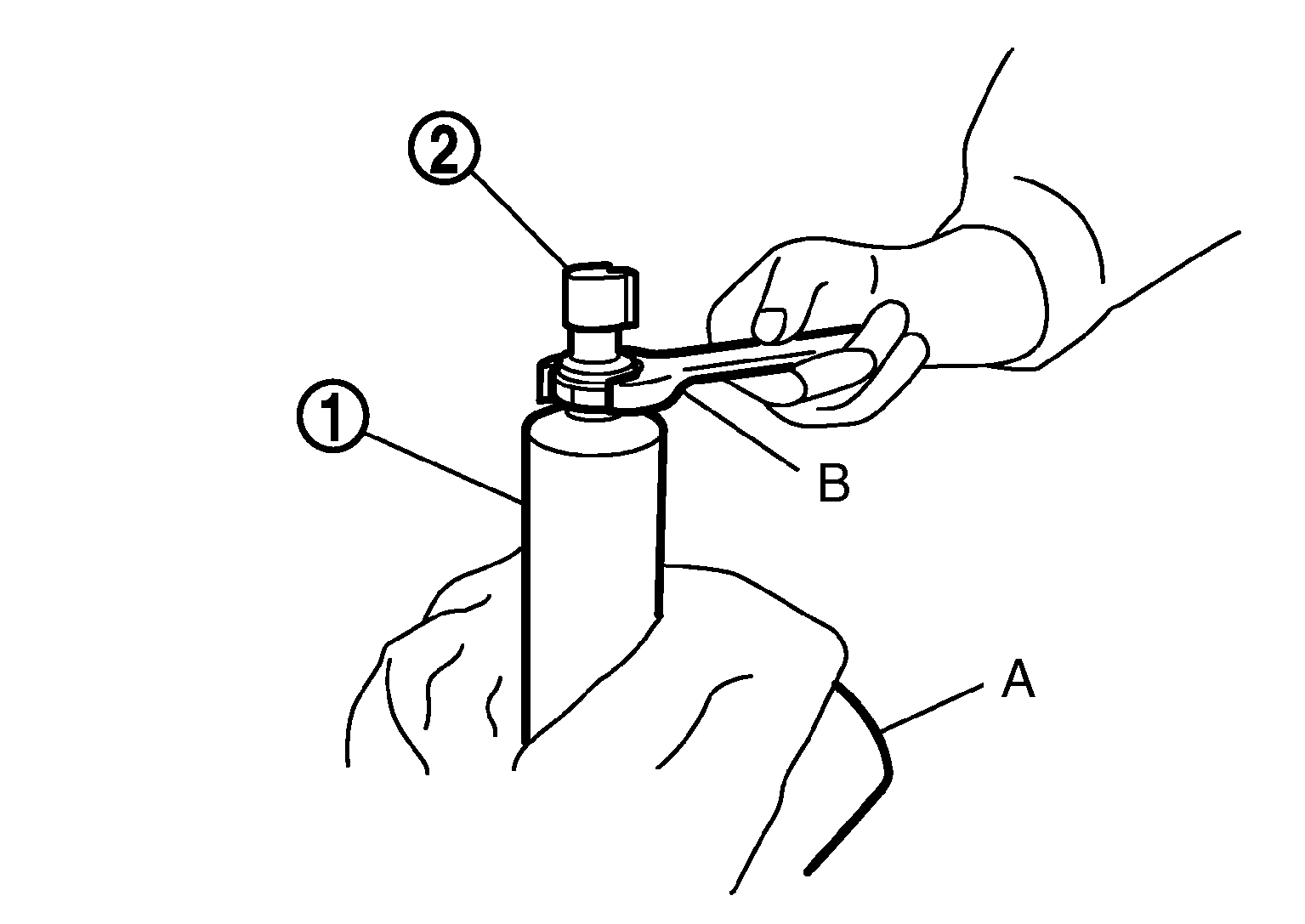

Fig 1: Removing Refrigerant Pressure Sensor Using Wrench
G05219751Courtesy of NISSAN NORTH AMERICA, INC.
