Exploded View

WARNING: This page is about a different variant/trim than selected.

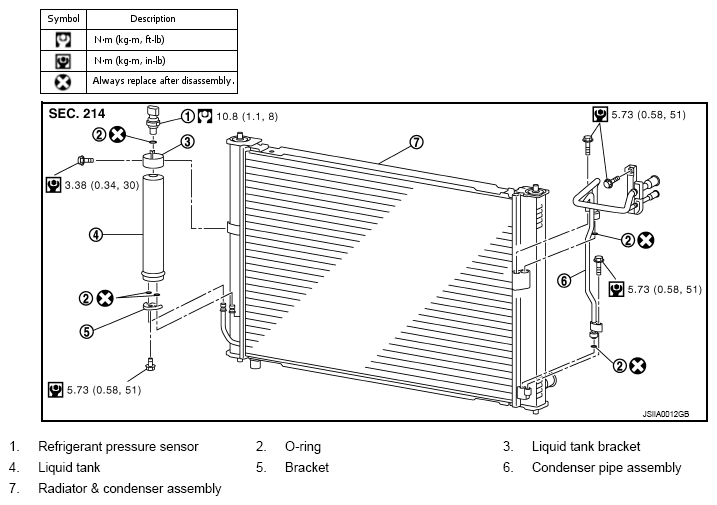

Fig 1: Exploded View Of Condenser With Torque Specifications
G08453092Courtesy of NISSAN NORTH AMERICA, INC.

Refer to COMPONENTS for symbols in the figure.
