Symptom Table
WARNING: This page is about a different car, the 2011 Infiniti FX50 and 2011 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
- Perform "Data Monitor" of CONSULT-III to check for any malfunctioning item.
- Check the malfunction combinations.
- Identify the malfunctioning part from the agreed combination and repair or replace the part.

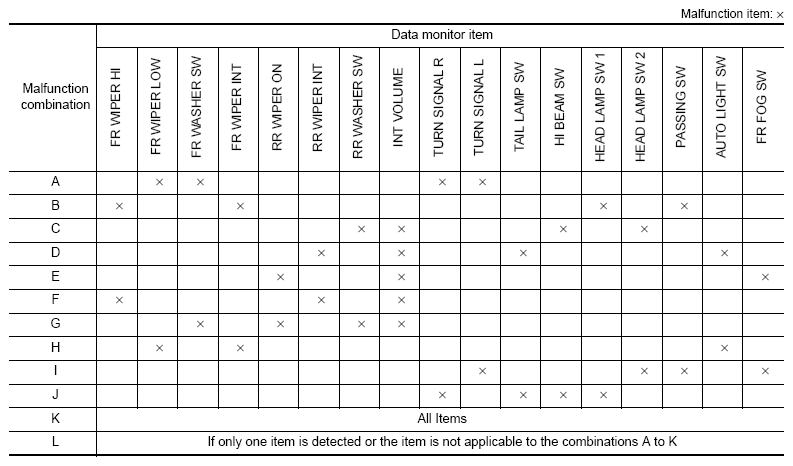

MALFUNCTIONING REFERENCE CHART
| Malfunction combination | Malfunctioning part | Repair or replace |
|---|---|---|
| A | Combination switch INPUT 1 circuit | Inspect the combination switch input circuit applicable to the malfunctioning part. Refer to "DIAGNOSIS PROCEDURE ". |
| B | Combination switch INPUT 2 circuit | |
| C | Combination switch INPUT 3 circuit | |
| D | Combination switch INPUT 4 circuit | |
| E | Combination switch INPUT 5 circuit | |
| F | Combination switch OUTPUT 1 circuit | Inspect the combination switch output circuit applicable to the malfunctioning part. Refer to "DIAGNOSIS PROCEDURE ". |
| G | Combination switch OUTPUT 2 circuit | |
| H | Combination switch OUTPUT 3 circuit | |
| I | Combination switch OUTPUT 4 circuit | |
| J | Combination switch OUTPUT 5 circuit | |
| K | BCM | Replace BCM. Refer to "EXPLODED VIEW ". |
| L | Combination switch | Replace the combination switch. |
