Exploded View

WARNING: This page is about a different car, the 2011 Infiniti FX50 and 2011 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before replacing BCM, perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : DESCRIPTION ".

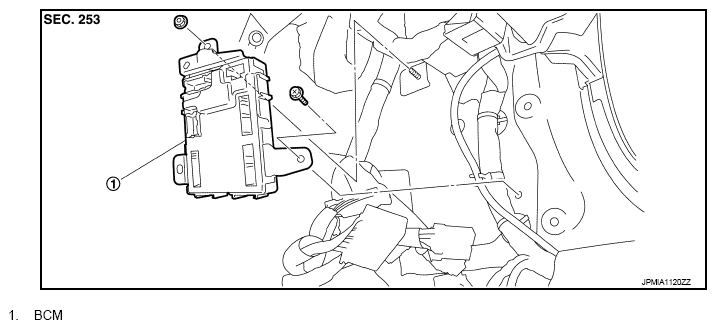

Fig 1: Identifying BCM (Body Control Module) Components

Courtesy of NISSAN MOTOR CO., U.S.A.
