TRANSFER FLUID : Refilling

WARNING: This page is about a different car, the 2011 Nissan Juke. However, it is still accessible from the selected car via links, so may be relevant.

Remove filler plug (1) and gasket. Then fill oil up to mounting hole for the filler plug.
Oil and viscosity : Refer to , "FLUIDS AND LUBRICANTS ".

Oil capacity : Refer to "GENERAL SPECIFICATIONS ".

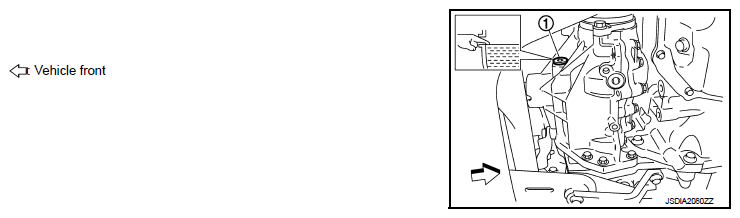

Fig 1: Checking That Oil Is Filled Up To Mounting Hole For Filler Plug
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Carefully fill the oil. (Fill up for approximately 3 minutes.)
Leave the vehicle for 3 minutes, and check the oil level again.
Before installing filler plug, set a new gasket. Install filler plug on transfer and tighten to the specified torque. Refer to "EXPLODED VIEW ".
CAUTION: Never reuse gasket.
