Steering Pad: Disposal

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

When scrapping a vehicle equipped with the SRS or disposing of the steering pad, be sure to deploy the airbag first in accordance with the procedure described below. If any abnormality occurs with the airbag deployment, contact the SERVICE DEPT. of TOYOTA MOTOR SALES, U.S.A., INC.

CAUTION:
  • Never dispose of a steering pad that has an inactivated airbag.
  • The airbag produces an exploding sound when it is deployed, so perform the operation outdoors and where it will not create a nuisance to nearby residents.
  • When deploying the airbag, always use the specified SST (SRS Airbag Deployment Tool). Perform the operation in a place away from electrical noise.
  • When deploying the airbag, perform the operation at least 10 m (32.8 ft.) away from the steering pad.
  • The steering pad becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
  • Use gloves and safety glasses when handling a steering pad with a deployed airbag.
  • Do not apply water to a steering pad with a deployed airbag.
  • Always wash your hands with water after completing the operation.
  • An airbag or pretensioner may be activated by static electricity. To prevent this, be sure to touch a metal surface with bare hands to discharge static electricity before performing this procedure.
  1. DISPOSE OF STEERING PAD (WHEN INSTALLED IN VEHICLE)

    HINT:

    Prepare a battery as the power source to deploy the airbag.

    1. Check the function of SST.

      SST 09082-00700

      CAUTION: When deploying the airbag, always use the specified SST (SRS Airbag Deployment Tool).
      Fig 1: Identifying Function Of SST
      G04951155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect SST to the battery. Connect the red clip of SST to the battery positive (+) terminal and the black clip of SST to the battery negative (-) terminal.
        Fig 2: Locating SST To Battery
        G04951156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Check the function of SST. Press SST activation switch, and check that the LED of SST activation switch comes on.
        CAUTION:
        • Do not connect SST connector (yellow colored) to the airbag.
        • If the LED comes on when the activation switch is not being pressed, SST malfunction is possible, so replace SST with a new one.
      3. Disconnect SST from the battery.
        Fig 3: Identifying SST Activation Switch
        G04951157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Read the precaution (see DIAGNOSIS SYSTEM  ).
    3. Disconnect the cable from the negative battery terminal.
      CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
      NOTE: Some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
    4. Remove the lower steering column cover.
      1. While turning the steering wheel assembly to the right and left, remove the 2 screws and steering column cover lower.
        Fig 4: Identifying Lower Steering Column Cover Screws
        G05155940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install SST.
      CAUTION: Check that there is no looseness in the steering wheel assembly and steering pad.
      1. Disconnect the airbag connector (yellow colored) from the spiral cable with steering sensor.
        NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
        Fig 5: Connecting SST Connector To Airbag Connector Of Spiral Cable With Steering Sensor
        G05155941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect SST connector to the airbag connector of the spiral cable with steering sensor.

        SST 09082-00700, 09082-00780

        NOTE: To avoid damaging SST connector and wire harness, do not lock the secondary lock of the twin lock.
      3. Move SST at least 10 m (32.8 ft.) away from the vehicle front side window.
      4. Maintaining enough clearance for SST wire harness in the front side window, close all doors and windows of the vehicle.
        NOTE: Take care not to damage SST wire harness.
      5. Connect the red clip of SST to the battery positive (+) terminal and the black clip of SST to the negative (-) terminal.
    6. Deploy the airbag.
      1. Check that no one is inside the vehicle or within a 10 m (32.8 ft.) radius of the vehicle.
      2. Press SST activation switch and deploy the airbag.
        Fig 6: Identifying Distance Between SST & Vehicle
        G04951160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        CAUTION:
        • When deploying the airbag, make sure that no one is near the vehicle.
        • The steering pad becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
        • Use gloves and safety glasses when handling a steering pad with a deployed airbag.
        • Do not apply water to a steering pad with a deployed airbag.
        • Always wash your hands with water after completing the operation.

        HINT:

        The airbag is deployed as the LED of SST activation switch comes on.

  2. DISPOSE OF STEERING PAD (WHEN NOT INSTALLED IN VEHICLE)
    CAUTION: Be sure to follow the procedure detailed below when deploying the airbag.

    HINT:

    Prepare a battery as the power source to deploy the airbag.

    1. Check the function of SST (see DIAGNOSIS SYSTEM  ).

      SST 09082-00700, 09082-00820

    2. Remove the steering pad (see REMOVAL  ).
      CAUTION:
      • When removing the steering pad, work must be started 90 seconds after the ignition switch is turned OFF and the negative (-) terminal cable is disconnected from the battery.
      • When storing the steering pad, keep the airbag deployment side facing upward.
        Fig 7: Identifying Function Of SST
        G04951155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a service-purpose wire harness for the vehicle, tie down the steering pad to the disc wheel.

      Wire harness:

      Stripped wire harness section 1.25 mm 2  or more (0.00193 in. 2  or more)

      CAUTION: If the wire harness is too thin or an alternative object is used to tie down the steering pad, it may be snapped by the shock when the airbag is deployed. Always use a wire harness for vehicle use with an area of at least 1.25 mm2 (0.00193 in.2 ).
      Fig 8: Identifying Wire Harness Diameter
      G04951163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      To calculate the area of the stripped wire harness section:

      Area = 3.14 x (Diameter)2 divided by 4

      1. Install the 2 bolts with washers into the 2 bolt holes on the steering pad.

        Bolt:

        L: 35.0 mm (1.38 in.)

        M:

        6.0 mm (0.236 in.)

        Pitch:

        1.0 mm (0.0394 in.)

        NOTE:
        • Tighten the bolts by hand until they become difficult to turn.
        • Do not tighten the bolts excessively.
          Fig 9: Identifying Steering Pad Bolt Length
          G05155945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. After connecting SST each other, connect them to the steering pad.

        SST 09082-00820

        Fig 10: Connecting SST To Steering Pad
        G05687564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

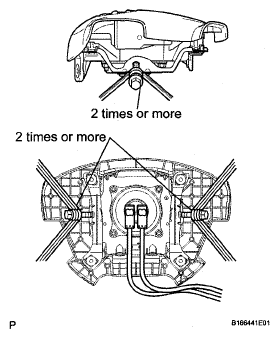

      3. Wind 3 wire harnesses at least 2 times each around the bolts installed on the left and right sides of the steering pad.
        CAUTION:
        • Tightly wind the wire harnesses around the bolts so that there is no slack.
        • Make sure that the wire harnesses are tight. If there is slack in the wire harnesses, the steering pad may become loose due to the shock when the airbag is deployed.
          Fig 11: Winding Wire Harnesses Around Bolts
          G05155947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Face the airbag deployment side of the steering pad upward. Separately tie the left and right sides of the steering pad to the disc wheel through the hub nut holes. Position SST connector so that it hangs downward through the hub hole of the disc wheel.
        CAUTION:
        • Make sure that the wire harnesses are tight. If there is slack in the wire harnesses, the steering pad may become loose due to the shock when the airbag is deployed.
        • Always tie down the steering pad with the airbag deployment side facing upward.
        NOTE: As the disc wheel may be damaged by the airbag deployment, use a disc wheel that you are planning to throw away.
        Fig 12: Tying Steering Pad & Disc Wheel
        G05155948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install SST.
      CAUTION: Place the disc wheel on level ground.
      1. Connect SST connector.

        SST 09082-00700

        NOTE: To avoid damaging SST connector and wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for SST wire harness inside the disc wheel.
        Fig 13: Identifying SST Connector
        G05155949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Move SST at least 10 m (32.8 ft.) away from the steering pad tied down to the disc wheel.
        Fig 14: Identifying Distance Between Disc Wheel & SST
        G05155950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Cover the steering pad with a cardboard box or tires.
      1. Covering method using a cardboard box: Cover the steering pad with the cardboard box and place the weights on the cardboard box in 4 places with at least 190 N (19 kgf, 41.9 lbf).

        Cardboard box size:

        Must exceed the following dimensions

        X:

        460 mm (1.51 ft.)

        Y:

        650 mm (2.13 ft.)

        NOTE:
        • When the dimension Y of the cardboard box exceeds the diameter of the disc wheel with tire which the steering pad is tied to, X should be the following size. X = 460 mm (18.1 in.) + width of tire.
        • If a cardboard box which is smaller than the specified size is used, the cardboard box will be broken by the shock from the airbag deployment.
          Fig 15: Identifying Cardboard Box Sizes
          G05155951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Covering method using tires:

        Place at least 3 tires without disc wheels on the tire with disc wheel which the steering pad is tied to. Place the tire with disc wheel on them.

        Tire size:

        Must exceed the following dimensions

        Tires

        Width: 185 mm (7.28 in.)

        Inner diameter:

        360 mm (1.18 ft.)

        CAUTION: Do not use tires with disc wheels except on the top and bottom.
        NOTE:
        • As the tires may be damaged by the airbag deployment, use a tire that you are planning to throw away.
        • Do not place SST connector under the tire because it could be damaged.
          Fig 16: Identifying Tire Covering Method
          G05155952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Tie the tires together with 2 wire harnesses.
        CAUTION: Make sure that the wire harnesses are tight. Looseness in the wire harnesses results in the tires coming free due to the shock when the airbag is deployed.
        Fig 17: Tying Tires
        G05687571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Deploy the airbag.
      1. Connect the red clip of SST to the battery positive (+) terminal and the black clip of SST to the battery negative (-) terminal.
      2. Check that no one is within a 10 m (32.8 ft.) radius of the disc wheel which the steering pad is tied to.
      3. Press SST activation switch and deploy the airbag.
        CAUTION: When deploying the airbag, make sure that no one is near the tire.

        HINT:

        The airbag is deployed as the LED of SST activation switch comes on.

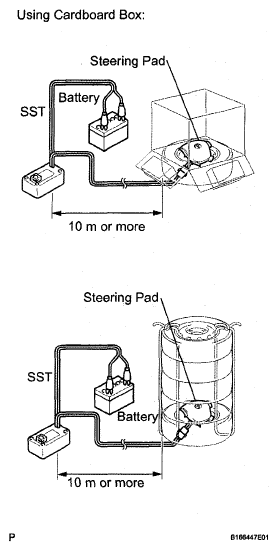

        Fig 18: Identifying Distance Between Tire & SST
        G05155954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Dispose of the steering pad.
      CAUTION:
      • The steering pad becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
      • Use gloves and safety glasses when handling a steering pad with a deployed airbag.
      • Do not apply water to a steering pad with a deployed airbag.
        Fig 19: Disposing Steering Pad
        G05155955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Always wash your hands with water after completing the operation.
      1. Remove the steering pad from the disc wheel.
      2. Place the steering pad in a plastic bag, tie it tightly and dispose of it in the same way as other general parts.
