Steering Pad: Removal

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

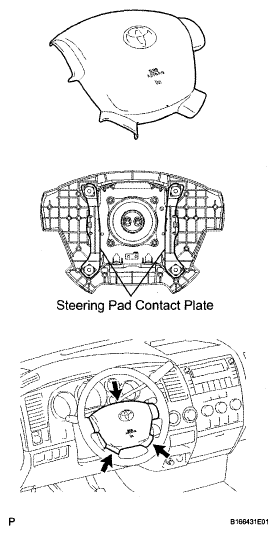

Fig 1: Identifying Steering Pad Contact Plates
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
- After the ignition switch is turned OFF, the navigation system requires approximately 90 seconds to record various types of memory and settings. As a result, after turning the ignition switch OFF, wait 90 seconds or more before disconnecting the cable from the negative (-) battery terminal.
- Some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
REMOVE LOWER NO. 3 STEERING WHEEL COVER
1. Using a screwdriver, remove the steering wheel cover.
  HINT:

  Tape the screwdriver tip before use.

  Fig 2: Identifying Lower No. 3 Steering Wheel Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LOWER NO. 2 STEERING WHEEL COVER
1. w/Cruise Control:
  1. Using a screwdriver, remove the No. 2 steering wheel cover.
    HINT:

    Tape the screwdriver tip before use.

    Fig 3: Identifying Lower No. 2 Steering Wheel Cover Claws (W/ Cruise Control)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/o Cruise Control:
  1. Using a screwdriver, remove the No. 2 steering wheel cover.
    HINT:

    Tape the screwdriver tip before use.

    Fig 4: Identifying Lower No. 2 Steering Wheel Cover Claws (W/O Cruise Control)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING PAD (w/ Steering Pad Switch)
1. Using a T30 "TORX" socket wrench, loosen the 2 screws until the groove along the screw circumference catches on the screw case.

  Fig 5: Locating Steering Pad Screws (W/ Steering Pad Switch)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull out the steering pad from the steering wheel, as shown below. Then support the steering pad with one hand.
  NOTE: When removing the steering pad, do not pull the airbag wire harness.
3. Disconnect the 2 connectors and remove the steering pad.
  NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

  Fig 6: Locating Steering Pad Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING PAD (w/o Steering Pad Switch)
1. Using a T30 "TORX" socket wrench, loosen the 2 screws until the groove along the screw circumference catches on the screw case.

  Fig 7: Locating Steering Pad Screws (W/O Steering Pad Switch)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull out the steering pad from the steering wheel, as shown below. Then support the steering pad with one hand.
  NOTE: When removing the steering pad, do not pull the airbag wire harness.
3. Disconnect the 2 connectors and remove the steering pad.
  NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

  Fig 8: Locating Steering Pad Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
