Disassembly and Assembly: Assembly

Note the following, and assembly is the reverse order of disassembly.

• Refer to "COMPONENT " about each tightening torque.
• Install new self-shear type screws and then cut off self-shear type screw heads.

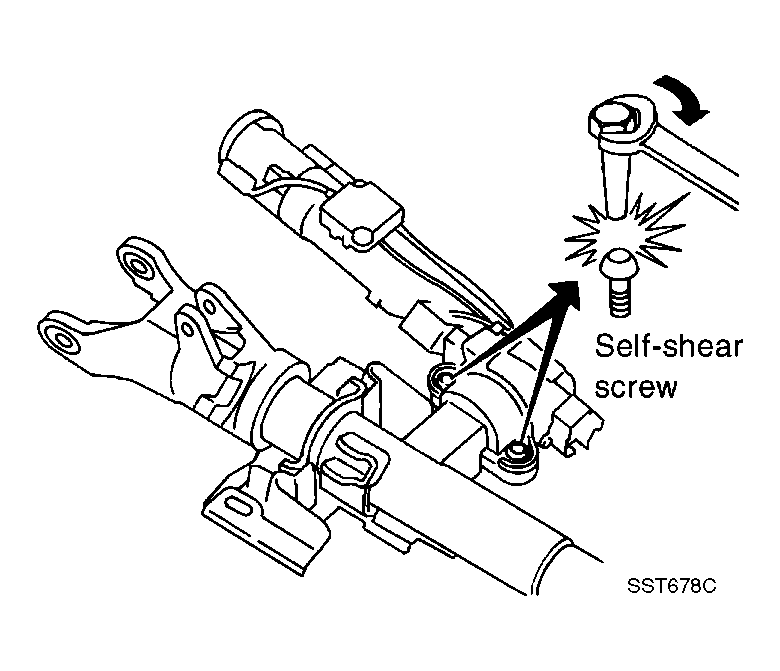

  Fig 1: Identifying Self-Shear Screw

  Courtesy of NISSAN MOTOR CO., U.S.A.
