Disassembly and Assembly: Component

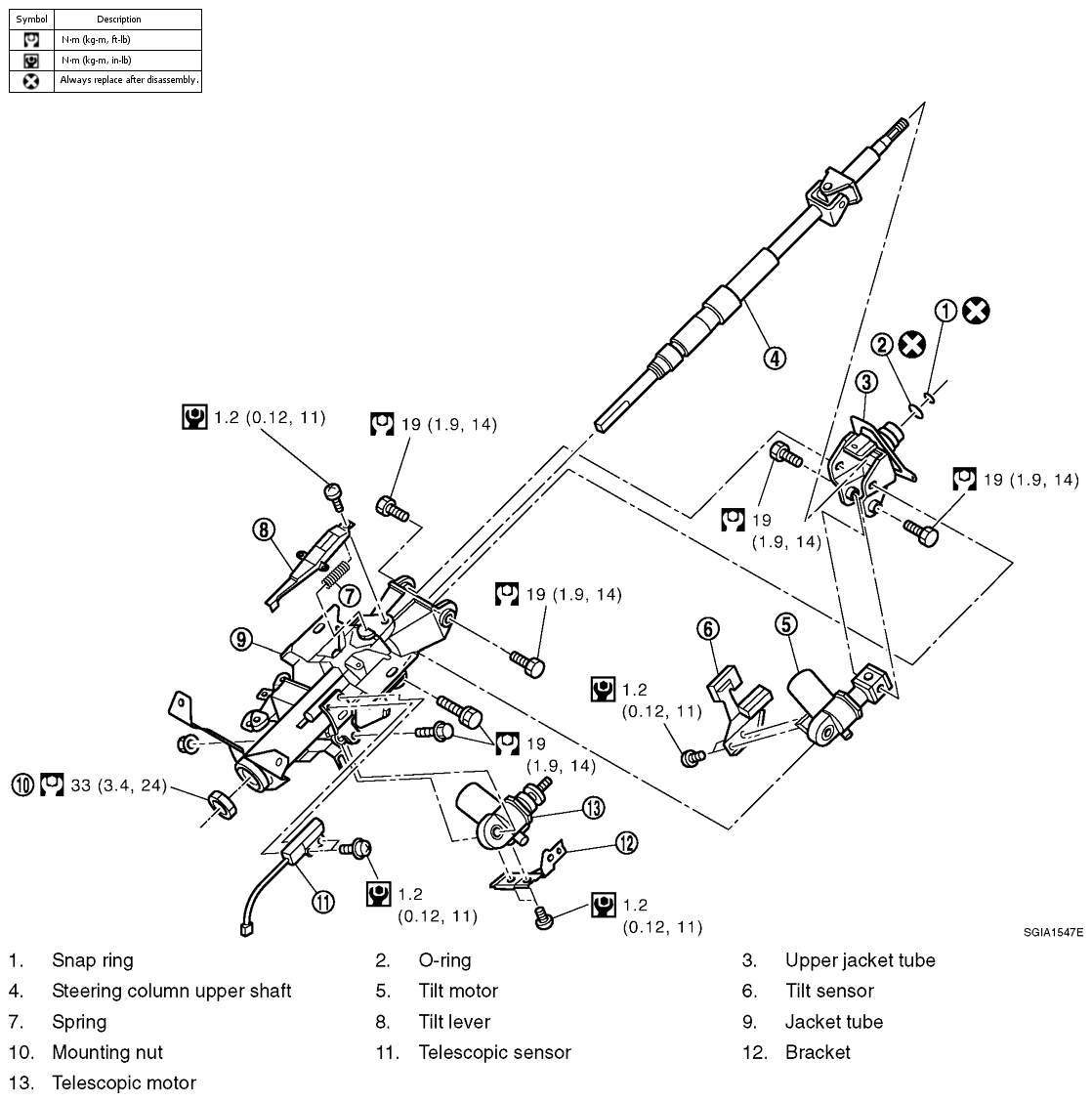

Fig 1: Exploded View Of Steering Column Component With Torque Specifications

G04129016

Courtesy of NISSAN MOTOR CO., U.S.A.
