Shift Control Components

WARNING: This page is about a different variant/trim than selected.
  1. Install 5th-6th shift fork to 5th-6th coupling sleeve.
  2. Install 5th-6th fork rod (reversal side) to 5th-6th shift fork.
  3. Drive retaining pin into 5th-6th shift fork using a pin punch [6 mm (0.24in) dia.].
    CAUTION: Do not reuse retaining pin.

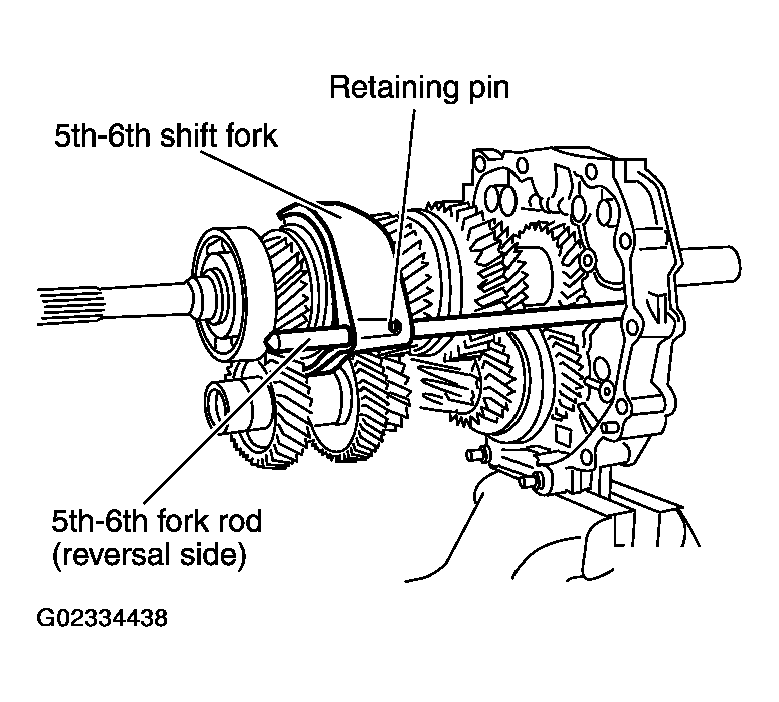

    Fig 1: Installing Retaining Pin Into 5th-6th Shift Fork
    G02334438Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install 5th-6th fork rod to adapter plate.
  5. Install 5th-6th fork rod bracket to 5th-6th fork rod.
  6. Drive retaining pin into 5th-6th fork rod bracket using a pin punch [6 mm (0.24in) dia.].
    CAUTION: Do not reuse retaining pin.

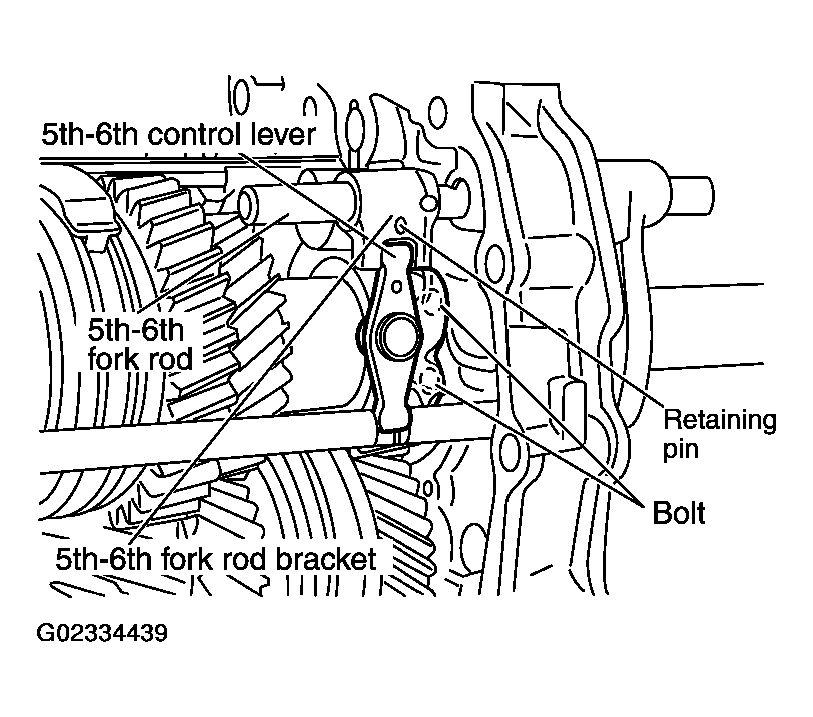

    Fig 2: Installing 5th-6th Fork Rod
    G02334439Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install 5th-6th control lever to adapter plate, and then tighten mounting bolts to the specified torque. Refer to "SHIFT CONTROL COMPONENTS ".
    CAUTION: Set the projection upward.

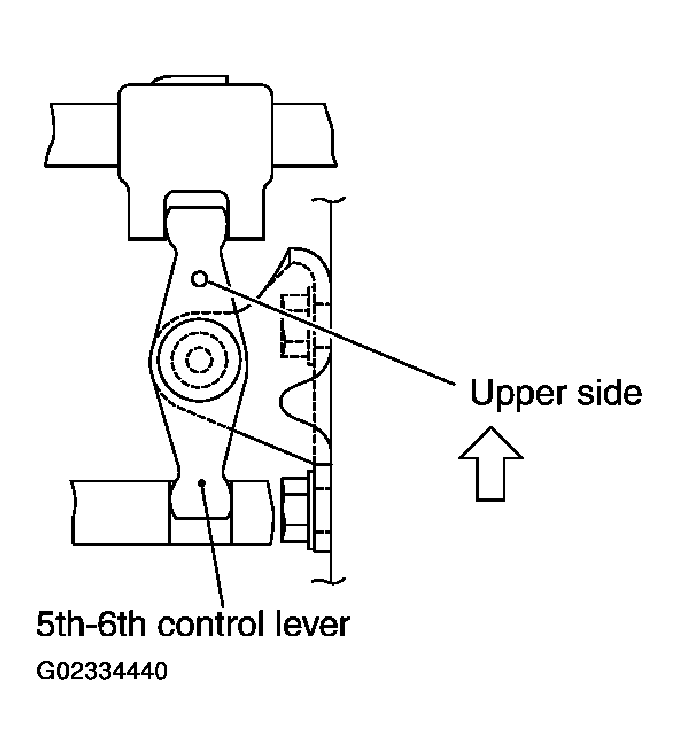

    Fig 3: Installing 5th-6th Control Lever
    G02334440Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Insert check balls into adapter plate.

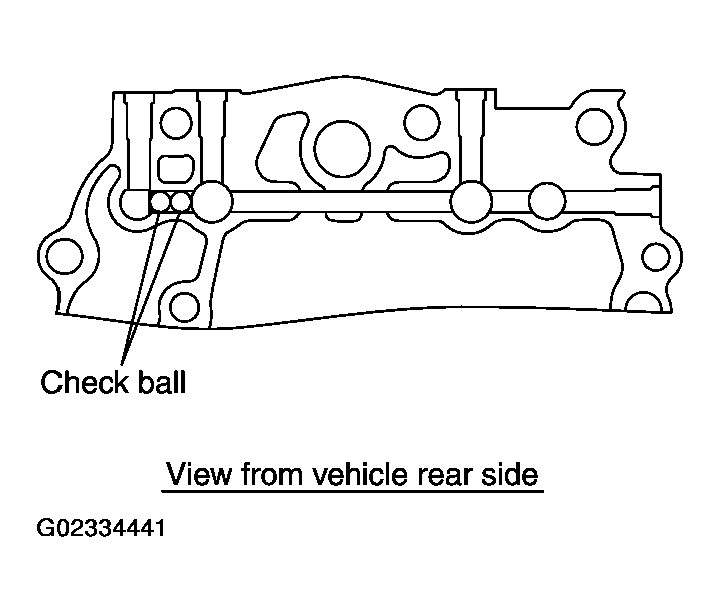

    Fig 4: Inserting Check Balls Into Adapter Plate
    G02334441Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install reverse shift fork onto reverse coupling sleeve.
  10. Insert reverse fork rod to reverse shift fork.
  11. Drive retaining pin into reverse shift fork using a pin punch [6 mm (0.24 in) dia.].
    CAUTION: Do not reuse retaining pin.

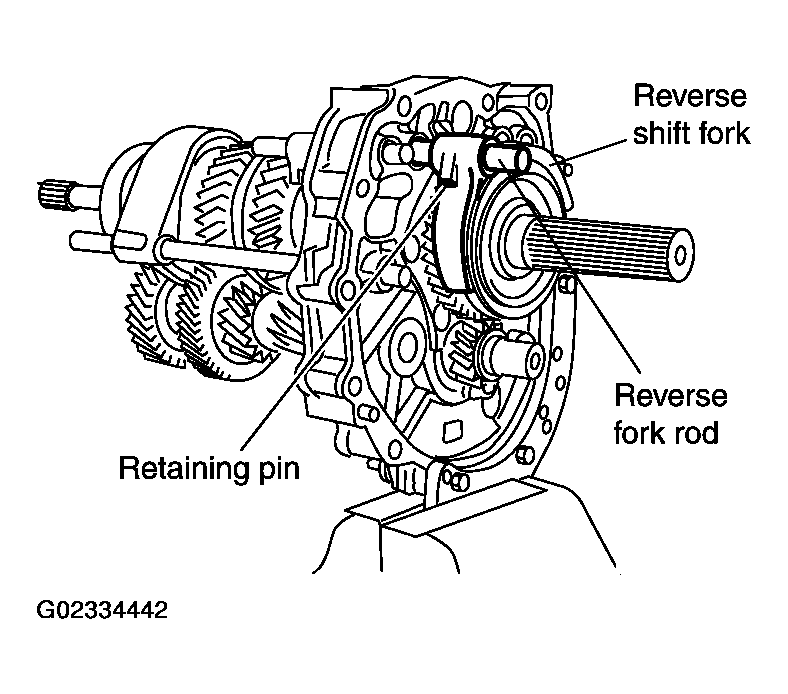

    Fig 5: Installing Reverse Shift Fork And Fork Rod
    G02334442Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Insert interlock pin and interlock plunger into adapter plate.

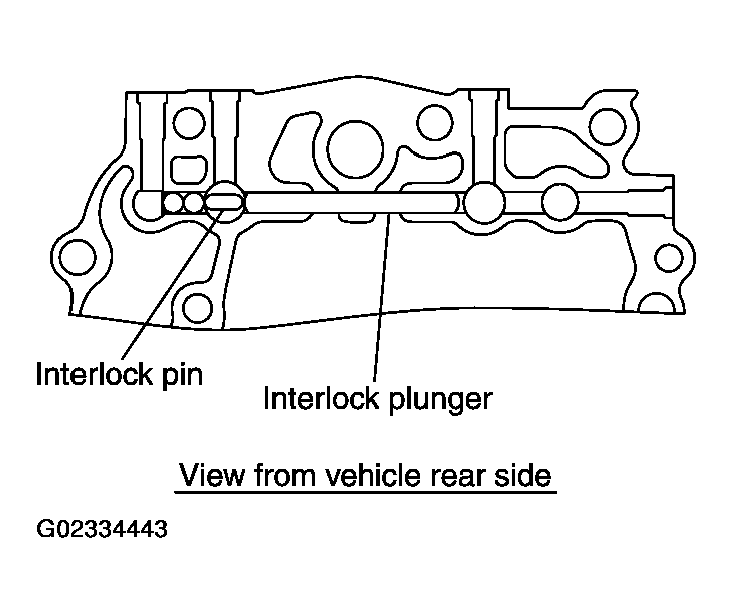

    Fig 6: Inserting Interlock Pin And Interlock Plunger Into Adapter Plate
    G02334443Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Install 1st-2nd shift fork onto 1st-2nd coupling sleeve.
  14. Insert 1st-2nd fork rod to 1st-2nd shift fork.
  15. Drive retaining pin into 1st-2nd shift fork using a pin punch [6 mm (0.24 in) dia.].
    CAUTION: Do not reuse retaining pin.

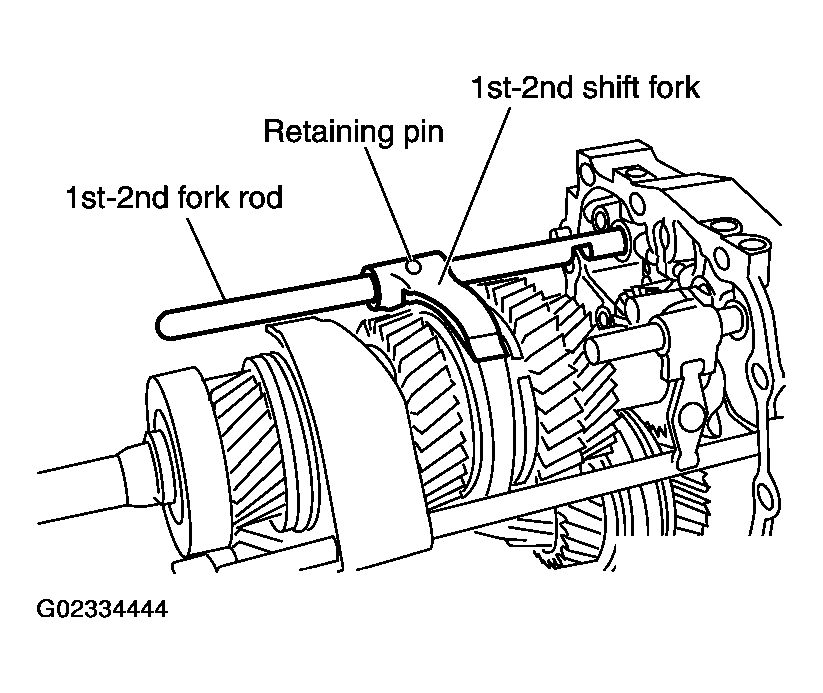

    Fig 7: Installing 1st-2nd Shift Fork And Fork Rod
    G02334444Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Install 3rd-4th shift fork onto 3rd-4th coupling sleeve.
  17. Install 3rd-4th fork rod (reversal side) to 3rd-4th shift fork.
  18. Drive retaining pin into 3rd-4th shift fork (reversal side) using a pin punch [6 mm (0.24 in) dia.].
    CAUTION: Do not reuse retaining pin.

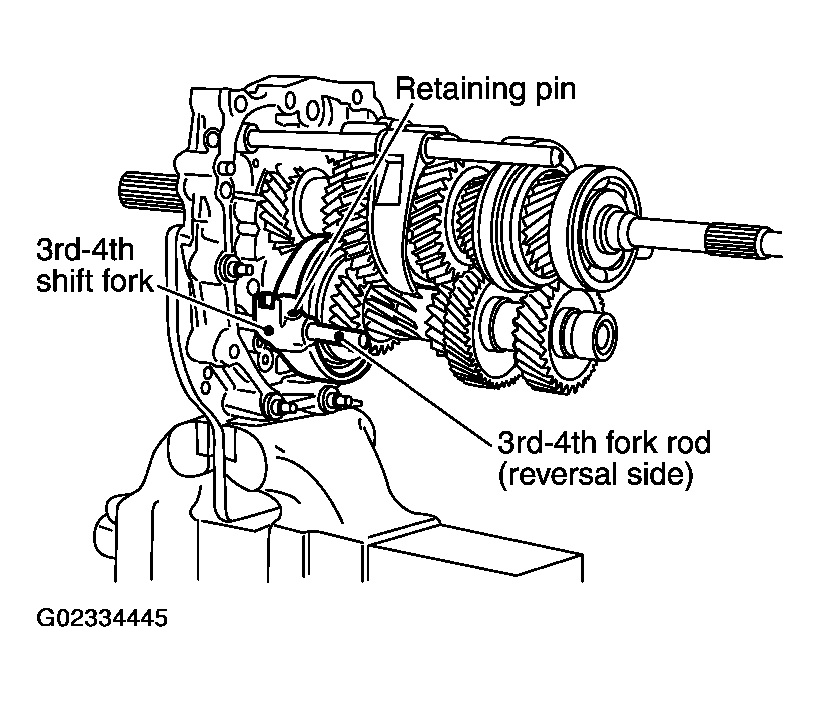

    Fig 8: Installing 3rd-4th Shift Fork And Fork Rod
    G02334445Courtesy of NISSAN MOTOR CO., U.S.A.
  19. Insert interlock pin and check balls into adapter plate.

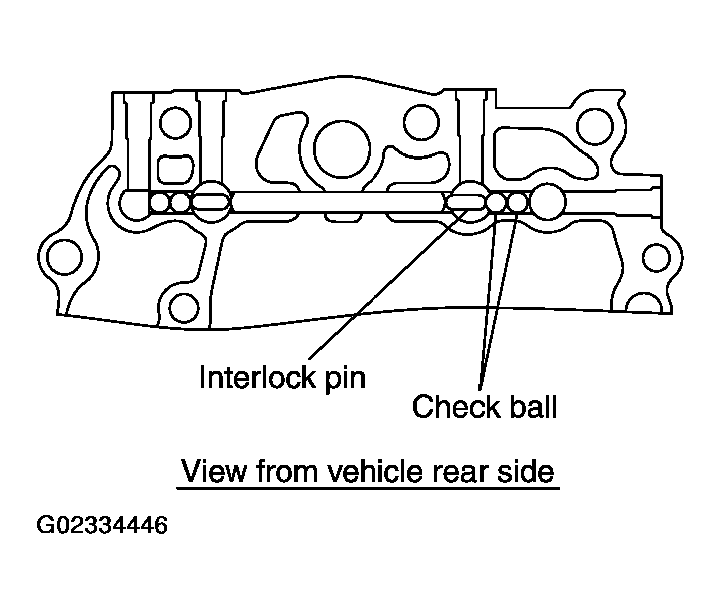

    Fig 9: Inserting Interlock Pin And Check Balls Into Adapter Plate
    G02334446Courtesy of NISSAN MOTOR CO., U.S.A.
  20. Install 3rd-4th fork rod to adapter plate.
  21. Install 3rd-4th fork rod bracket to 3rd-4th fork rod.
  22. Drive retaining pin into 3rd-4th fork rod bracket using a pin punch [6 mm (0.24 in) dia.].
    CAUTION: Do not reuse retaining pin.

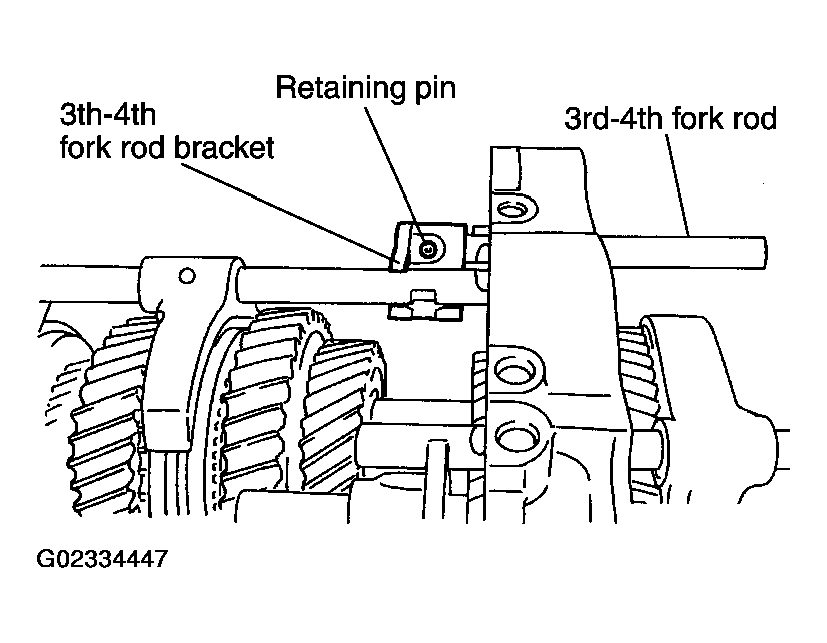

    Fig 10: Installing 3rd-4th Fork Rod And Fork Rod Bracket
    G02334447Courtesy of NISSAN MOTOR CO., U.S.A.
  23. Insert check ball, check ball spring into adapter plate, apply Genuine Silicone RTV or equivalent (refer to GENERAL INFORMATION - G35 COUPE ) to check ball plug threads, and tighten to the specified torque. Refer to "SHIFT CONTROL COMPONENTS ".

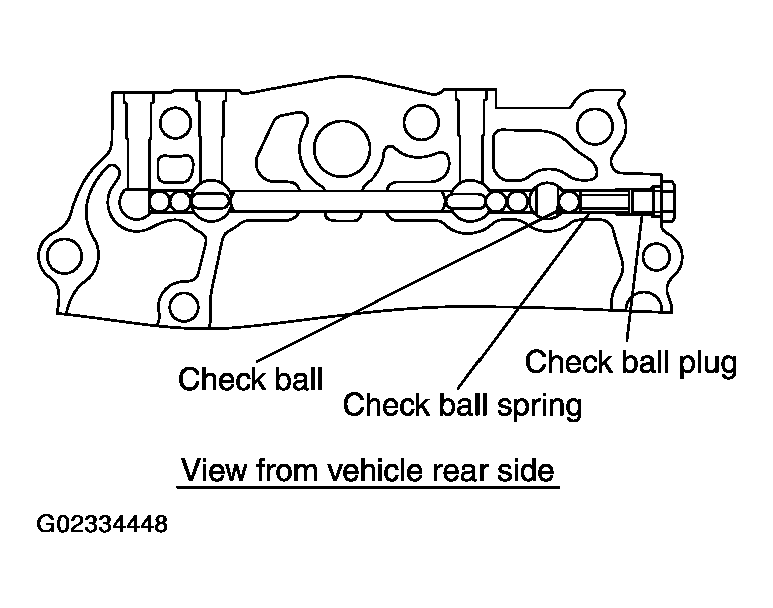

    Fig 11: Inserting Check Ball, Check Ball Spring And Tightening Check Ball Plug (1 Of 2)
    G02334448Courtesy of NISSAN MOTOR CO., U.S.A.
  24. Install shifter cap to 3rd-4th control lever.
  25. Insert 3rd-4th control lever to adapter plate, and then tighten mounting bolts to the specified torque. Refer to "SHIFT CONTROL COMPONENTS ".
    CAUTION: Make sure the top and bottom are oriented correctly.

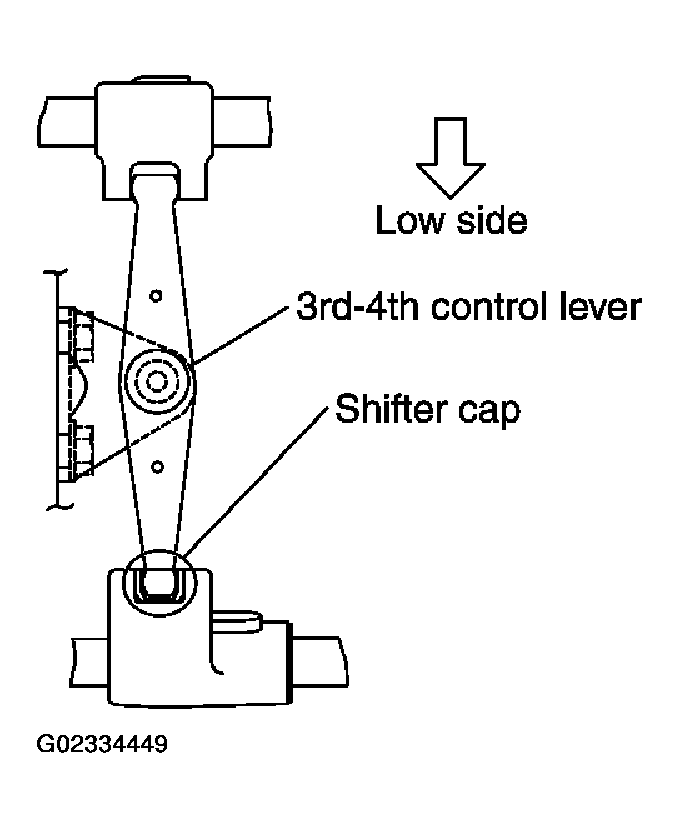

    Fig 12: Installing Shifter Cap To 3rd-4th Control Lever
    G02334449Courtesy of NISSAN MOTOR CO., U.S.A.
  26. Insert check ball spring and check ball into the adapter plate, apply Genuine Silicone RTV or equivalent (refer to GENERAL INFORMATION - G35 COUPE ) to the check ball plug threads, and tighten to the specified torque. Refer to "SHIFT CONTROL COMPONENTS ".

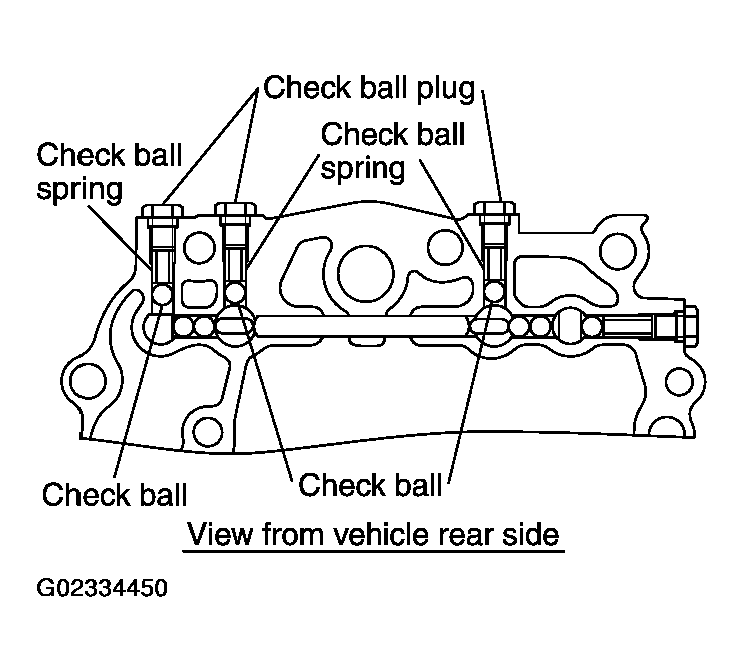

    Fig 13: Inserting Check Ball, Check Ball Spring And Tightening Check Ball Plug (2 Of 2)
    G02334450Courtesy of NISSAN MOTOR CO., U.S.A.
  27. Install striking rod to adapter plate.
  28. Install striking lever to striking rod.
  29. Drive retaining pin into striking lever using a pin punch [6 mm (0.24 in) dia.].
    CAUTION: Do not reuse retaining pin.

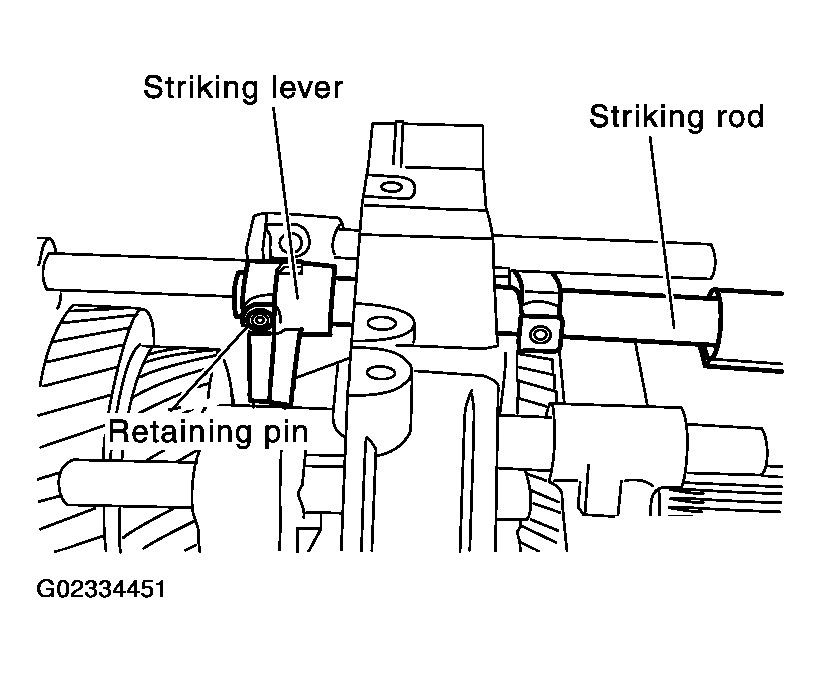

    Fig 14: Installing Striking Lever To Striking Rod
    G02334451Courtesy of NISSAN MOTOR CO., U.S.A.
  30. Install baffle plate onto adapter plate, and tighten mounting bolts to the specified torque.

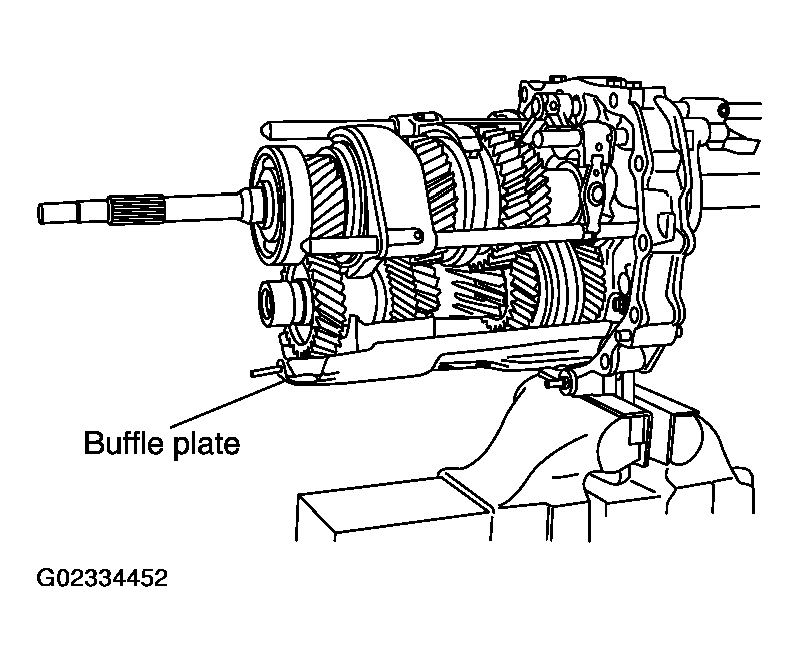

    Fig 15: Installing Baffle Plate On Adapter Plate
    G02334452Courtesy of NISSAN MOTOR CO., U.S.A.
