Shift Control Components

WARNING: This page is about a different variant/trim than selected.

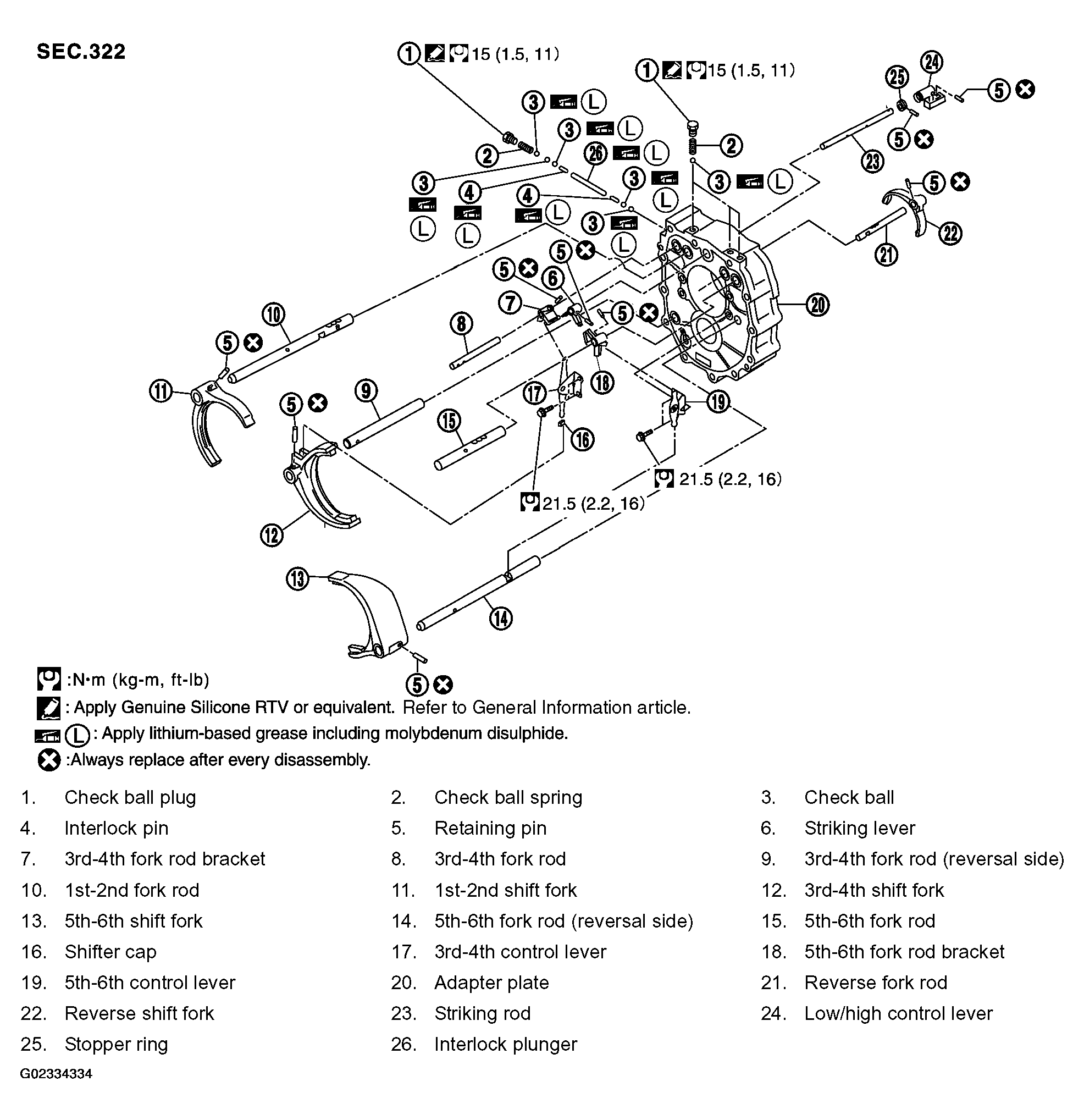

Fig 1: Identifying Shift Control Components (1 Of 2)
G02334334Courtesy of NISSAN MOTOR CO., U.S.A.

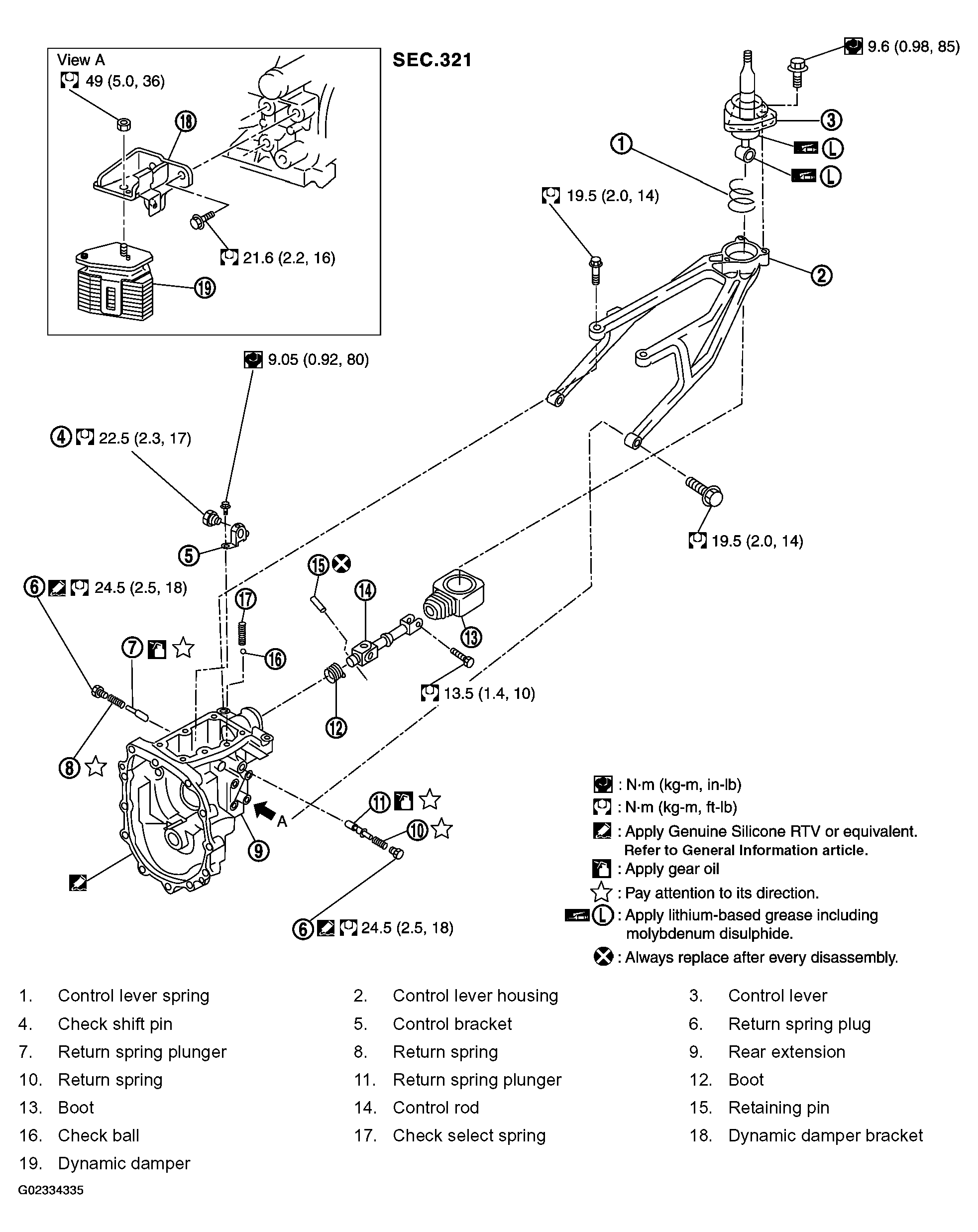

Fig 2: Identifying Shift Control Components (2 Of 2)
G02334335Courtesy of NISSAN MOTOR CO., U.S.A.
