Operation Procedure

Perform "CONSULT-II SETTING PROCEDURE". Refer to, "CONSULT-II SETTING PROCEDURE ".
Touch "DTC WORK SUPPORT".

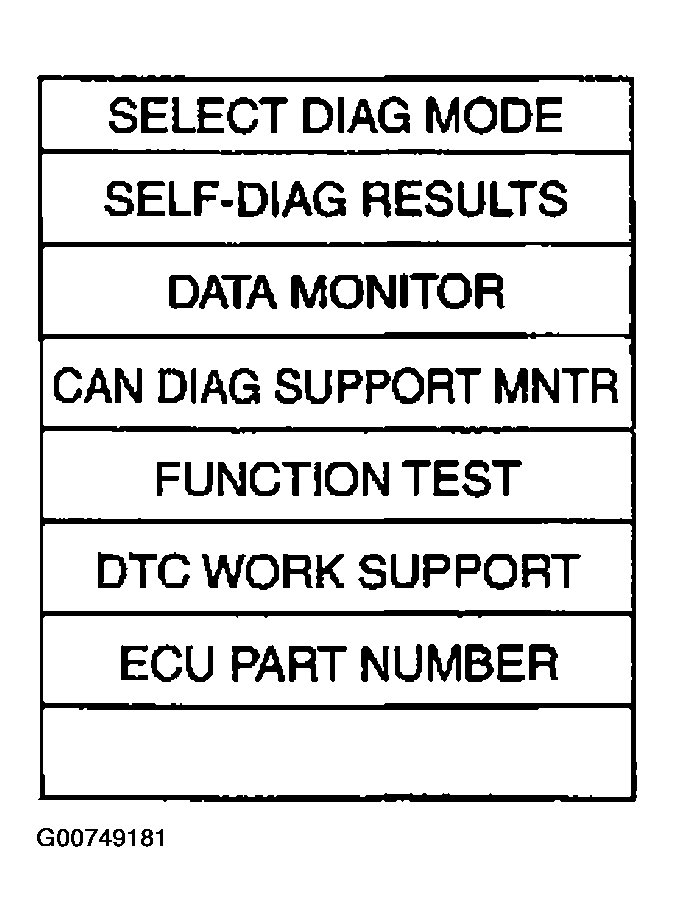

Fig 1: Selecting "DTC WORK SUPPORT" On CONSULT-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch select item menu.

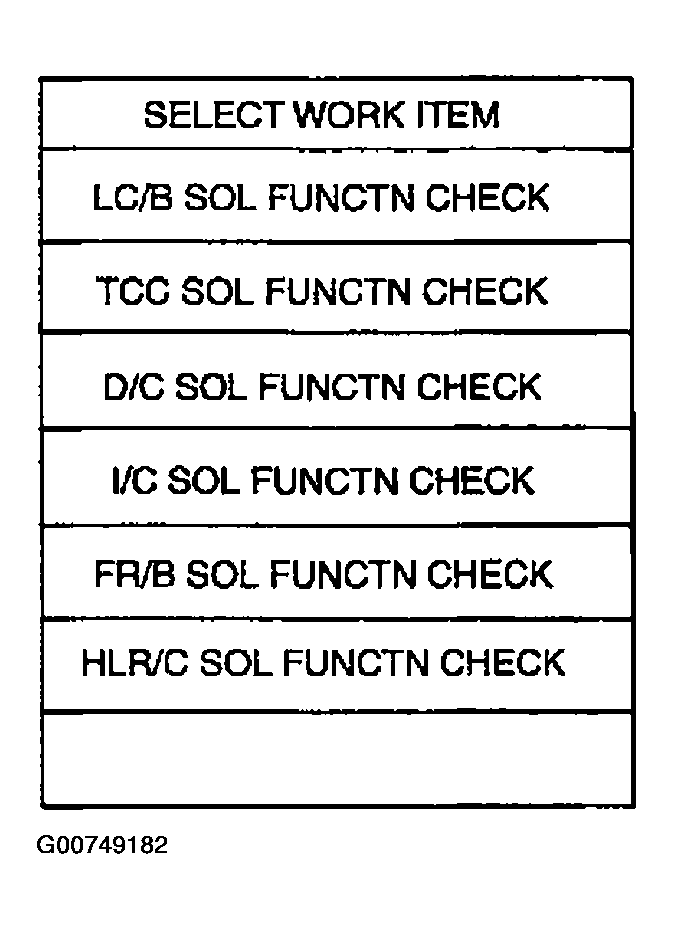

Fig 2: Selecting "SELECT WORK ITEM" On CONSULT-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

Fig 3: Viewing CONSULT-II Screen After Selecting Item Menu
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

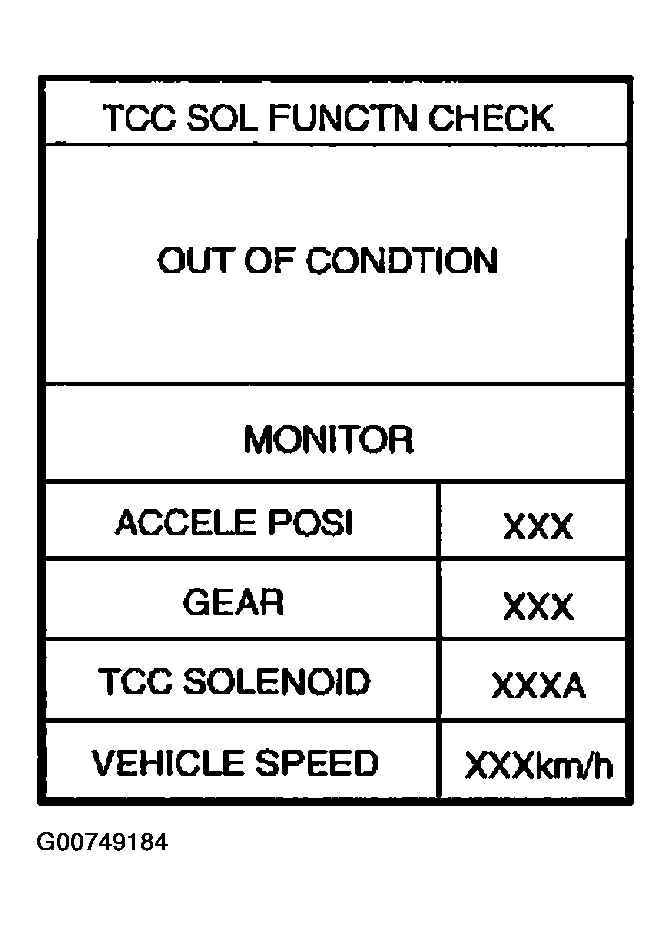

Fig 4: Viewing CONSULT-II Screen Before Testing Conditions Are Satisfied
Courtesy of NISSAN MOTOR CO., U.S.A.
- When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".

  Fig 5: Viewing CONSULT-II Screen When Testing Conditions Are Satisfied
  Courtesy of NISSAN MOTOR CO., U.S.A.
Stop vehicle.

Fig 6: CONSULT-II Screen Displaying Stop Vehicle
Courtesy of NISSAN MOTOR CO., U.S.A.
- If "NG" appears on the screen, malfunction may exist. Go to "Diagnostic Procedure".

  Fig 7: CONSULT-II Screen Displaying Malfunction Present
  Courtesy of NISSAN MOTOR CO., U.S.A.
Perform test drive to check gear shift feeling in accordance with instructions displayed.
Touch "YES" or "NO".
CONSULT-II procedure ended.

Fig 8: CONSULT-II Screen Displaying No Malfunction Present
Courtesy of NISSAN MOTOR CO., U.S.A.
- If "NG" appears on the screen, malfunction may exist. Go to "Diagnostic Procedure".

  Fig 9: CONSULT-II Screen Displaying NG (Possible Malfunction Present)
  Courtesy of NISSAN MOTOR CO., U.S.A.
