CONSULT-II Setting Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in instrument lower panel on driver side.
  3. Turn ignition switch ON.

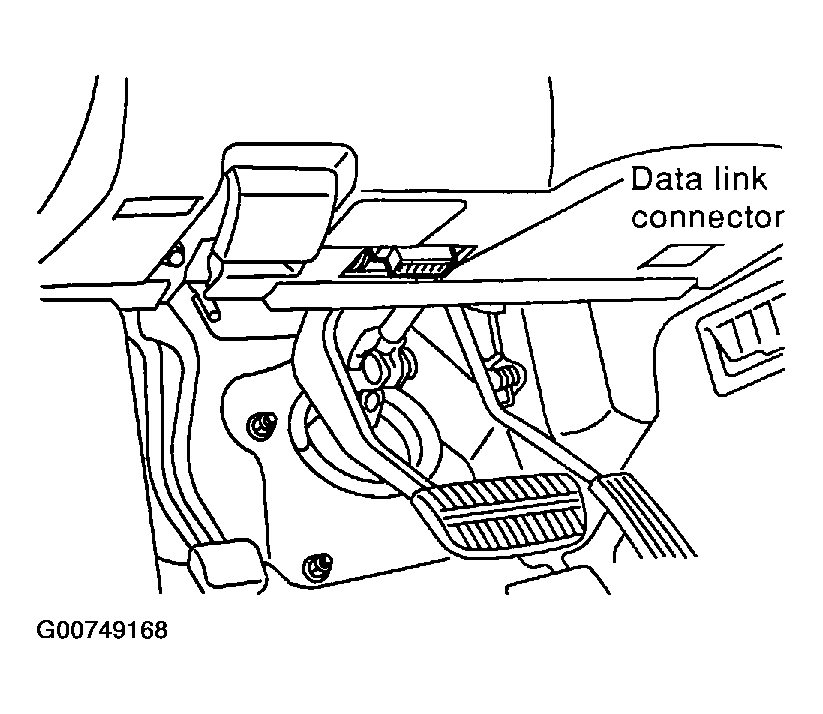

    Fig 1: Locating Data Link Connector
    G00749168Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Selecting "START (NISSAN BASED VHCL)" On CONSULT-II Screen
    G00749169Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "A/T".

    If "A/T" is not indicated, go to , " CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT  "  .

  6. Perform each diagnostic test mode according to each service procedure.
