Work Flow: Notes

  1. Print all the data of "SELF-DIAG RESULTS" for "ENGINE", "VDC", "ICC", and "A/T" displayed on CONSULT-II.

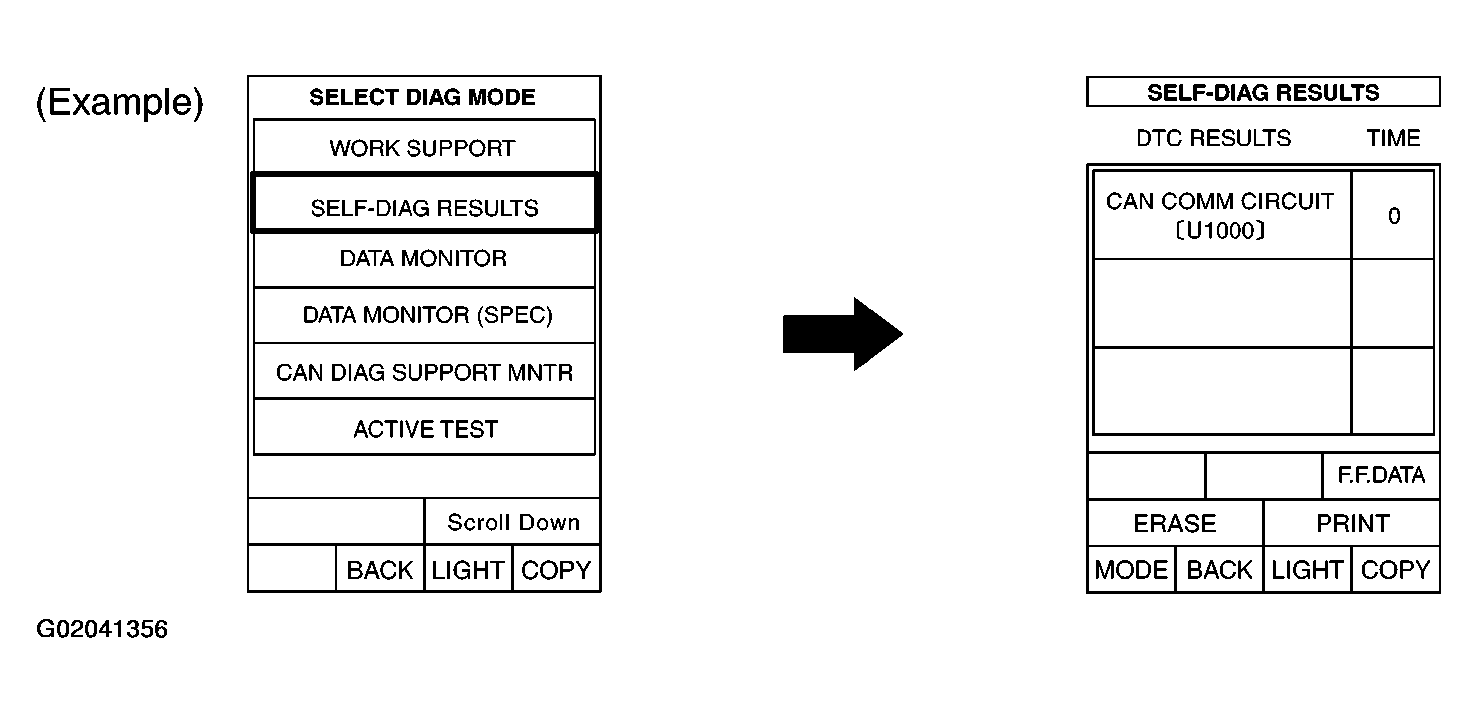

    Fig 1: Work Flow Chart (1 Of 2)
    G02041356Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Print all the data of "CAN DIAG SUPPORT MNTR" for "ENGINE", "VDC", "ICC", and "A/T" displayed on CONSULT-II.

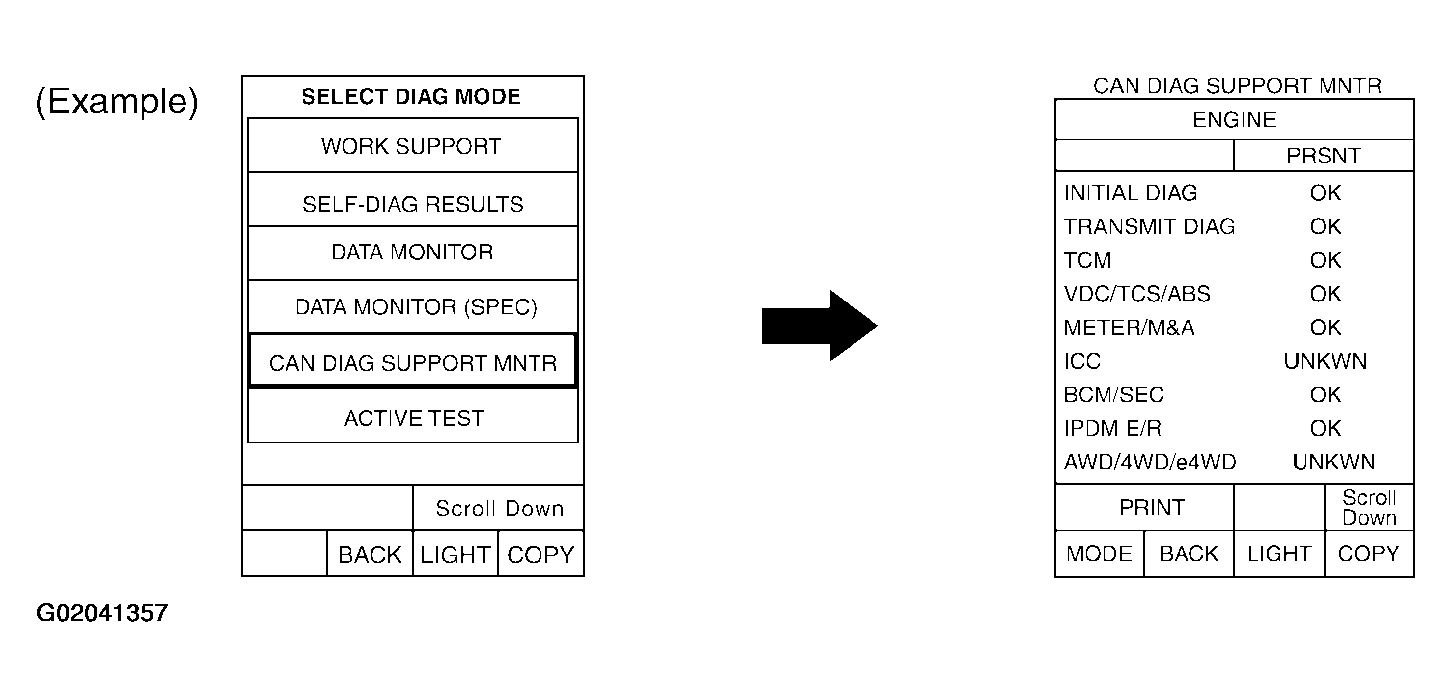

    Fig 2: Work Flow Chart (2 Of 2)
    G02041357Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Attach the printed sheet of "SELF-DIAG RESULTS" and "CAN DIAG SUPPORT MNTR" onto the check sheet. Refer to "CHECK SHEET  ".
  4. Based on the "CAN DIAG SUPPORT MNTR" results, put marks "v" onto the items with "NG" or "UNKWN" in the check sheet table. Refer to "CHECK SHEET  ".
    NOTE: If "NG" is displayed on "INITIAL DIAG (Initial diagnosis)" as "CAN DIAG SUPPORT MNTR" for the diagnosed control unit, replace the control unit.
  5. According to the check sheet results (example), start inspection. Refer to "CHECK SHEET RESULTS (EXAMPLE)  ".
