Check Sheet

NOTE: If "NG" is displayed on "INITIAL DIAG (Initial diagnosis)" as "CAN DIAG SUPPORT MNTR" for the diagnosed control unit, replace the control unit.

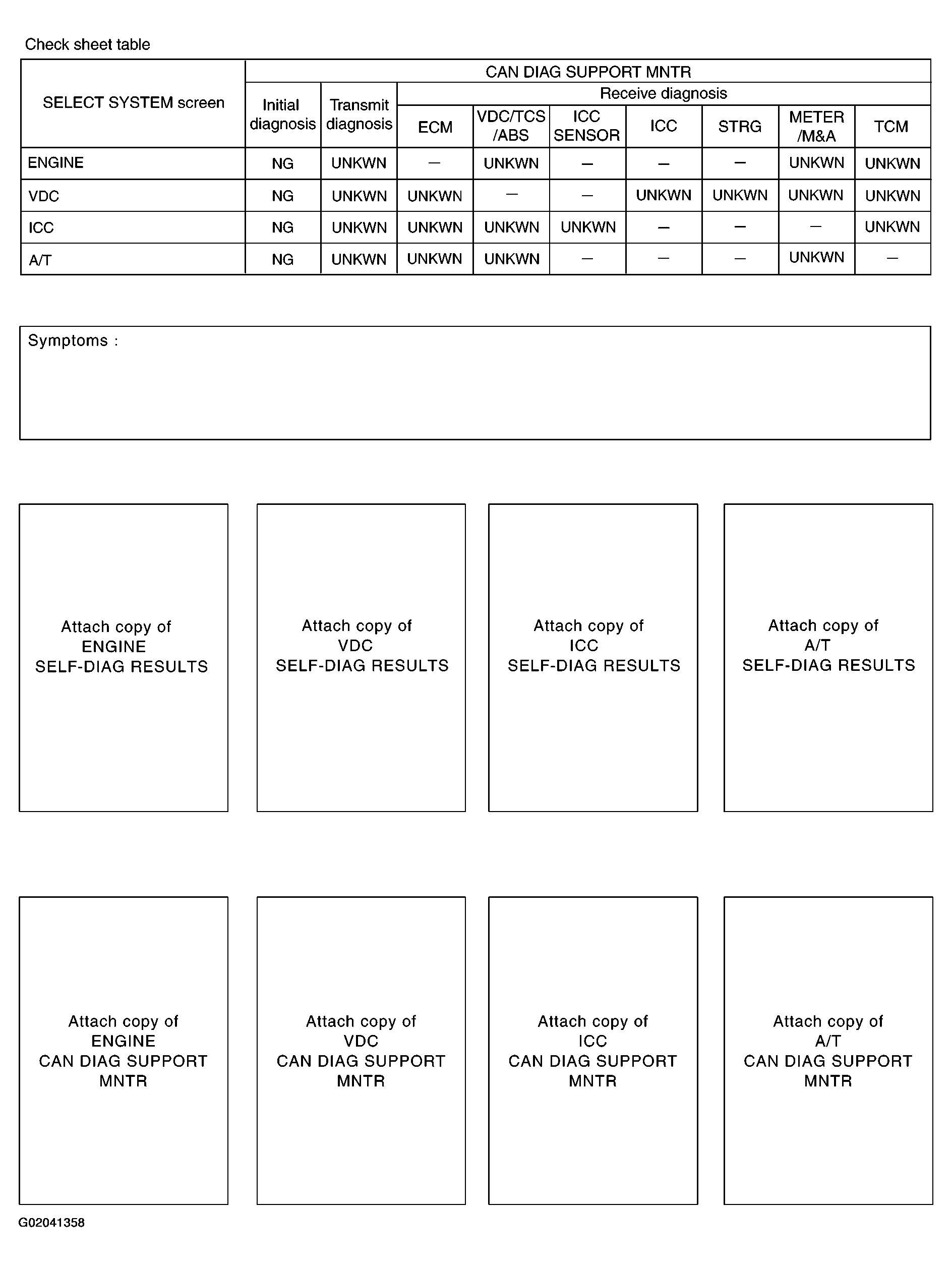

Fig 1: Trouble Diagnose Check Sheet
G02041358Courtesy of NISSAN MOTOR CO., U.S.A.
