High Clutch: Assembly

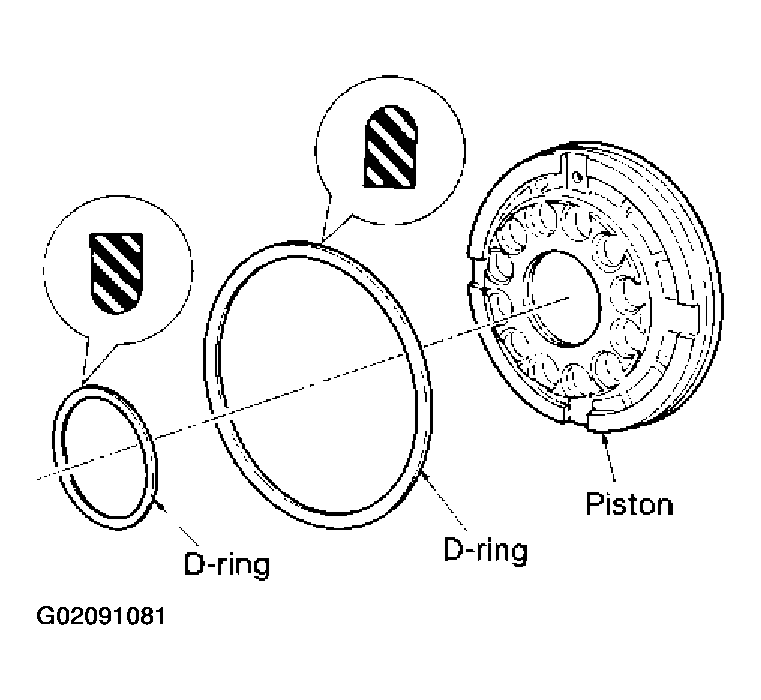

Install D-rings on piston.

Fig 1: Installing D-Rings On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
- Apply ATF to both parts.

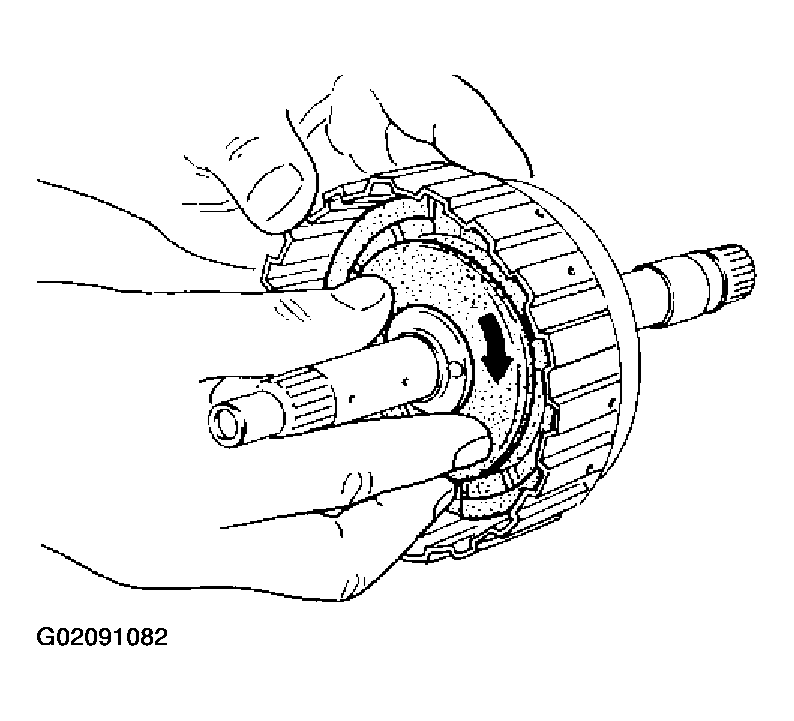

Install piston assembly by turning it slowly.

Fig 2: Installing Piston Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
- Apply ATF to inner surface of drum.
Install return springs and spring retainer on piston.

Fig 3: Installing Return Springs & Spring Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.
Set Tool on spring retainer and install snap ring while compressing return springs.

Fig 4: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
- Set Tool directly over return springs.
- Do not align snap ring gap with spring retainer stopper.
Fig 5: Identifying Snap Ring & Spring Retainer Stopper
Courtesy of NISSAN MOTOR CO., U.S.A.
Install drive plates, driven plates and retaining plate.
- Take care with the order and direction of plates.
Install snap ring.

Fig 6: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.

Fig 7: Measuring Clearance Between Retaining Plate & Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Specified clearance
  1. Standard: 1.8 - 2.2 mm (0.071 - 0.087 in)
  2. Allowable limit: 2.8 mm (0.110 in)
2. Retaining plate:
  1. Refer to SDS CLUTCH AND BRAKES .
Check operation of high clutch.
Refer to DISASSEMBLY and HIGH CLUTCH .

Fig 8: Applying Compressed Air To Oil Hole Of Input Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Install seal rings to input shaft.
- Apply petroleum jelly to seal rings.
- Always replace when removed.

  Fig 9: Installing Seal Rings To Input Shaft
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Roll paper around seal rings to prevent seal rings from spreading.
Fig 10: Rolling Paper Around Seal Rings
