High Clutch: Disassembly

Check operation of high clutch.
1. Apply compressed air to oil hole of input shaft with nylon cloth.

  Fig 1: Applying Compressed Air To Oil Hole Of Input Shaft
  Courtesy of NISSAN MOTOR CO., U.S.A.
  - Stop up hole on opposite side of input shaft with nylon cloth.
2. Check to see that retaining plate moves to snap ring.
3. If retaining plate does not contact snap ring:
  - D-ring might be damaged.
  - Oil seal might be damaged.
  - Fluid might be leaking past piston check ball.
Remove seal rings from input shaft.

Fig 2: Removing Seal Rings From Input Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
- Always replace when removed.
Remove snap ring.

Fig 3: Removing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove drive plates, driven plates and retaining plate.
Set Tool on spring retainer and remove snap ring from high clutch drum while compressing return springs.
- Set Tool directly over springs.
- Do not expand snap ring excessively.
Remove spring retainer and return springs.

Fig 4: Removing Snap Ring From High Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove piston from high clutch drum by turning it.

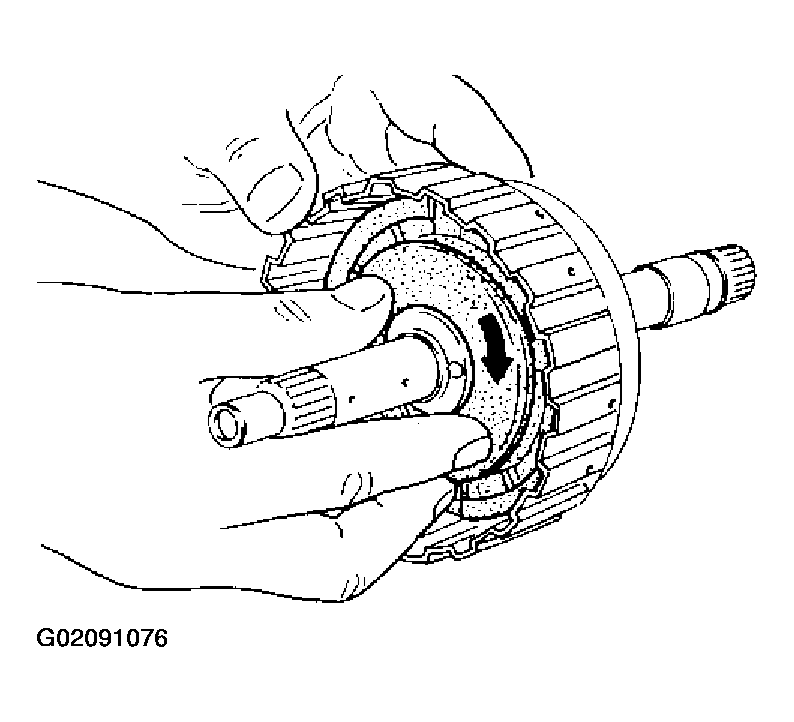

Fig 5: Removing Piston From High Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove D-rings from piston.

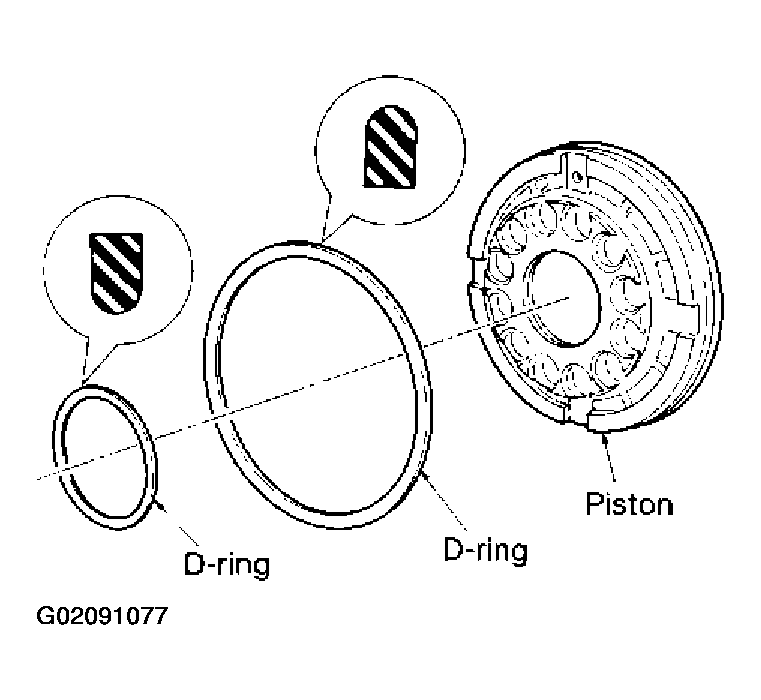

Fig 6: Removing D-Rings From Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
