Checking Memory Function

WARNING: This page is about a different car, the 2004 Infiniti FX45 and 2004 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the temperature to 32°C (90°F).
  2. Press OFF switch.
  3. Turn ignition switch OFF.
  4. Turn ignition switch ON.
  5. Press the AUTO switch.
  6. Confirm that the set temperature remains at previous temperature.
  7. Press OFF switch.

If NG, go to trouble diagnosis procedure for MEMORY FUNCTION  .

If OK, continue with next check.

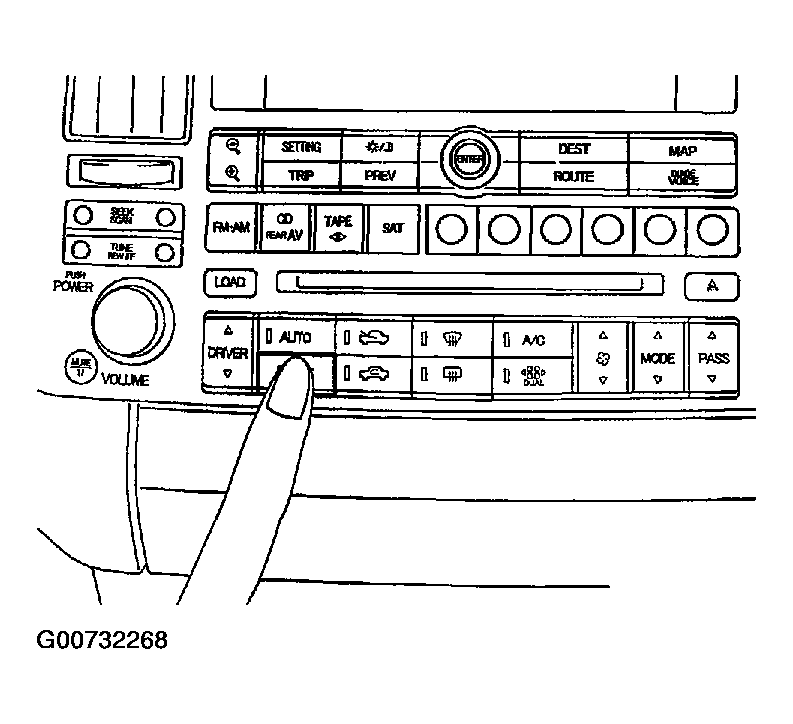

Fig 1: Checking Memory Function
G00732268Courtesy of NISSAN MOTOR CO., U.S.A.
