Intake Sensor

WARNING: This page is about a different car, the 2004 Infiniti FX45 and 2004 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

After disconnecting intake sensor connector M254, measure resistance between terminals 1 and 2 at sensor side, using the table below.

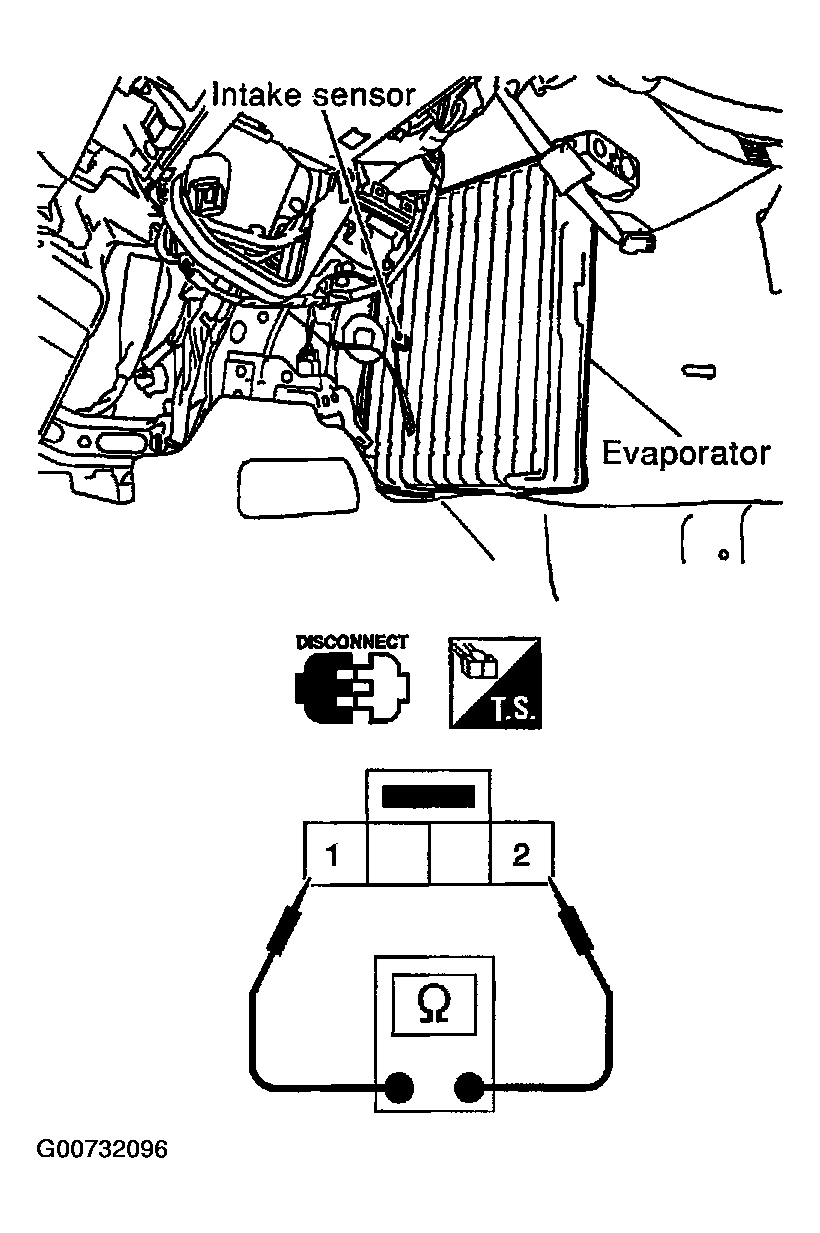

Fig 1: Disconnecting Intake Sensor Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

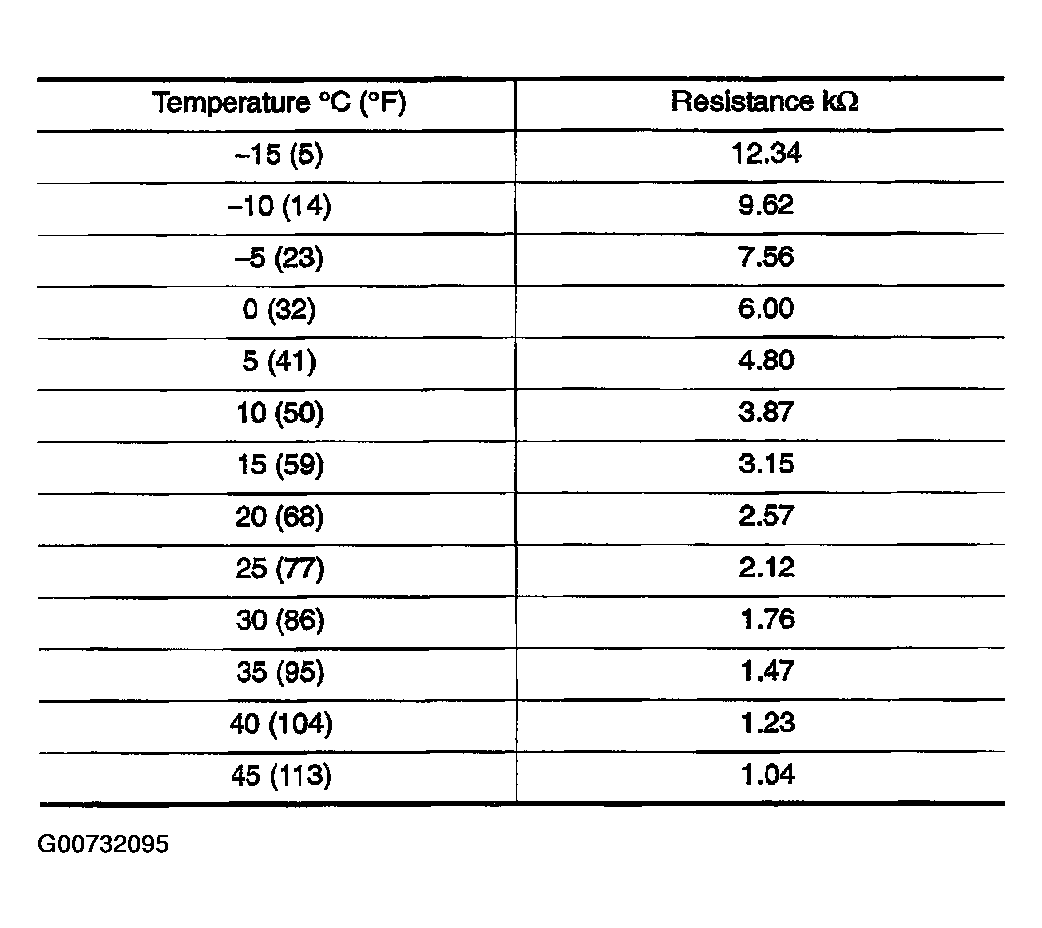

Fig 2: Describing Intake Sensor Temperature & Resistance

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace intake sensor.
