Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Infiniti FX45 and 2004 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front defroster grille (right side). Refer to REMOVAL AND INSTALLATION .
  2. Disconnect sunload sensor connector.
  3. Remove sunload sensor.

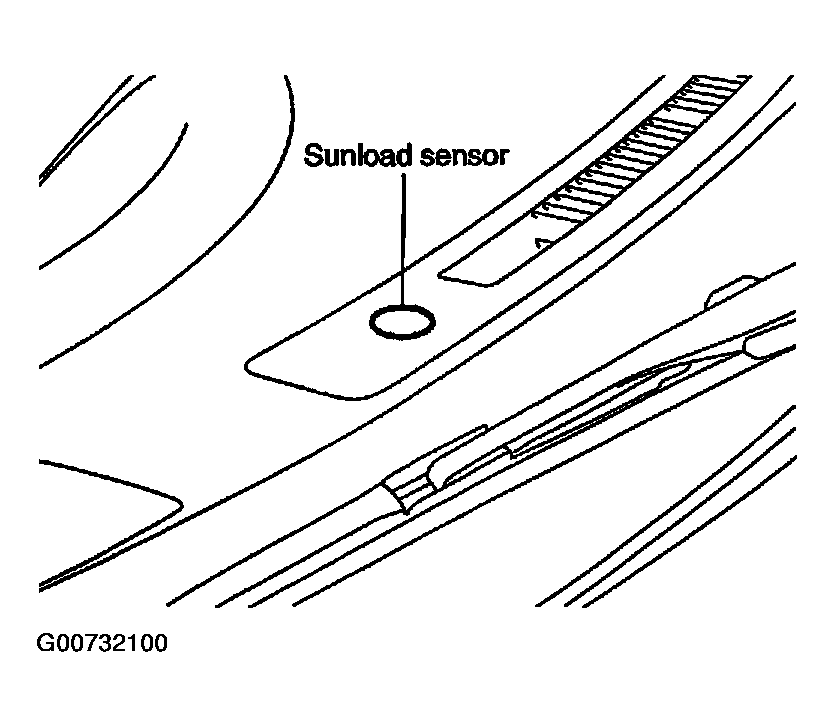

Fig 1: Locating Sunload Sensor
G00732100Courtesy of NISSAN MOTOR CO., U.S.A.
