Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Infiniti FX45 and 2004 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Set the temperature at 18°C (60°F), and then disconnect the battery negative cable.
Use a refrigerant collecting equipment (for HFC-134a) to discharge refrigerant.
Remove the mounting bolt, then remove the low-pressure pipe 2 and high-pressure pipe 3. Refer to REMOVAL AND INSTALLATION OF LOW-PRESSURE PIPE 2 AND HIGH-PRESSURE PIPE 3 .
CAUTION: Seal connection opening of piping with a cap or vinyl tape to avoid exposure to atmosphere.
Slide the evaporator to passenger side, then remove the intake sensor.

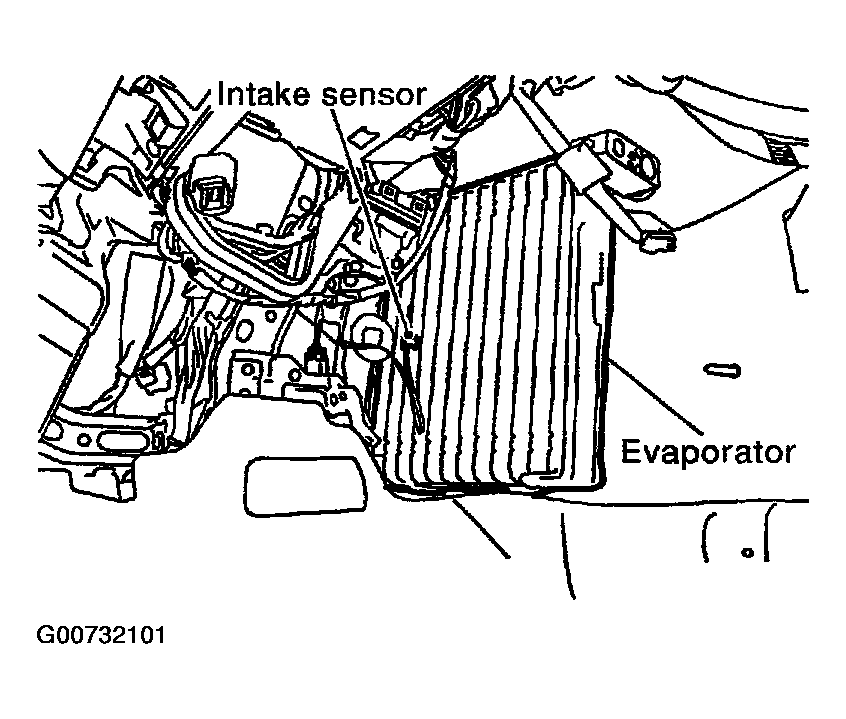

Fig 1: Locating Intake Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
