Discharge Air Flow

WARNING: This page is about a different car, the 2004 Infiniti FX45 and 2004 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

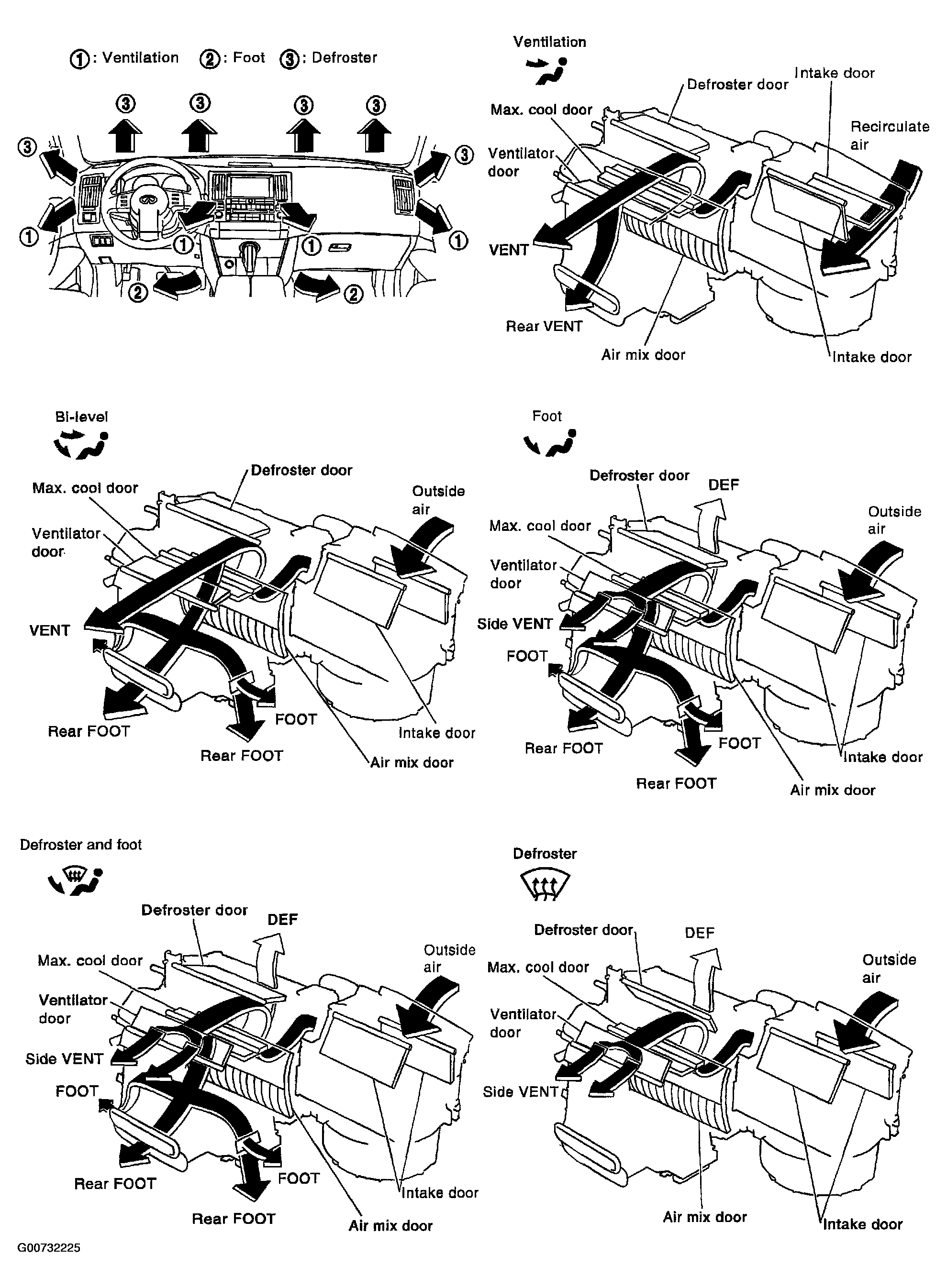

Fig 1: Describing Discharge Air Flow
G00732225Courtesy of NISSAN MOTOR CO., U.S.A.
