Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Take care not to scratch the body surface.
- Remove the liftgate trim.
(Refer to Liftgate - "LIFTGATE TRIM ")

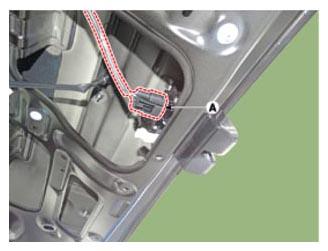

- Disconnect the liftgate latch connector (A).

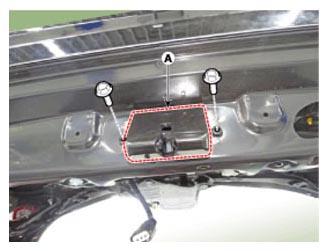

- After loosening the mounting bolts, then remove the liftgate latch assembly (A).
Tightening torque:
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)
- Install in the reverse order of removal.
NOTE:
- Make sure the liftgate locks/unlocks and opens/closes properly.
- Adjust the liftgate alignment.
- Make sure the connectors are connected in properly.
