Terminal Function

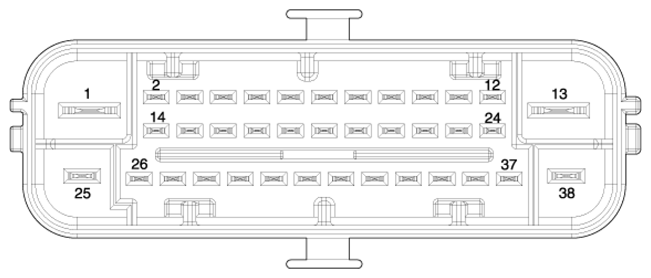

G13029080Courtesy of HYUNDAI MOTOR AMERICA
Pin No Description Current (AMPS) Resistance (mΩ) Remark
13 PUMP MOTOR GROUND 137 (RUSH) 10
38 GROUND 40 10
1 POS. BATTERY 2. (MOTOR) 137 (RUSH) 10
25 POS. BATTERY 1. (SOLENOID) 40 10
29 IGN1 (+) 50 mA 60
34 SENSOR FRONT LEFT POWER 30 mA 250
18 SENSOR FRONT RIGHT POWER 30 mA 250
33 SENSOR REAR LEFT POWER 30 mA 250
19 SENSOR REAR RIGHT POWER 30 mA 250
21 SENSOR FRONT LEFT SIGNAL 16.8 mA 250
31 SENSOR FRONT RIGHT SIGNAL 16.8 mA 250
20 SENSOR REAR LEFT SIGNAL 16.8 mA 250
32 SENSOR REAR RIGHT SIGNAL 16.8 mA 250
23 ESC OFF SWITCH 10 mA 250
14 C-CAN High 30 mA 250
2 C-CAN Low 30 mA 250
22 L-CAN High 30 mA 250
35 L-CAN Low 30 mA 250
16 BRAKE LIGHT SWITCH 10 mA 250
37 CLUTCH SWITCH 10 mA 250
30 DBC SWITCH 10 mA 250
28 SENSOR REAR RIGHT OUTPUT 16 mA 250
17 SENSOR FRONT RIGHT OUTPUT 16 mA 250
