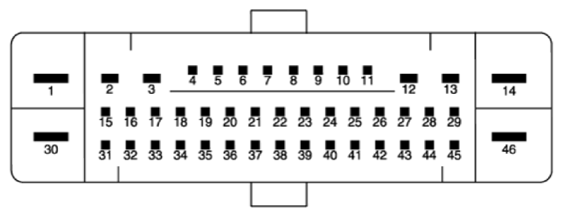

| 1 |
Voltage supply for pump motor |
39A |
10 mΩ |
| 2 |
RR EPB Motor power |
30A |
10 mΩ |
| 3 |
RR EPB Motor ground |
30A |
10 mΩ |
| 4 |
- |
- |
- |
| 5 |
- |
- |
- |
| 6 |
Electric parking brake signal 1 |
20 mA |
250 mΩ |
| 7 |
Electric parking brake signal 2 |
20 mA |
250 mΩ |
| 8 |
Electric parking brake signal 3 |
20 mA |
250 mΩ |
| 9 |
Electric parking brake signal 4 |
20 mA |
250 mΩ |
| 10 |
- |
- |
250 mΩ |
| 11 |
- |
- |
- |
| 12 |
RL EPB Motor ground |
30A |
- |
| 13 |
RL EPB Motor power |
30A |
10 mΩ |
| 14 |
Ground for solenoid valves and ECU |
30A |
10 mΩ |
| 15 |
- |
- |
10 mΩ |
| 16 |
- |
- |
250 mΩ |
| 17 |
ESP OFF switch signal |
16.8 mA |
|
| 18 |
- |
- |
- |
| 19 |
C-CAN High |
100 mA |
250 mΩ |
| 20 |
C-CAN Low |
100 mA |
250 mΩ |
| 21 |
- |
- |
250 mΩ |
| 22 |
P-CAN High |
100 mA |
250 mΩ |
| 23 |
P-CAN High |
200 mA |
250 mΩ |
| 24 |
- |
- |
250 mΩ |
| 25 |
Wheel speed sensor supply voltage (RL) |
16.8 mA |
|
| 26 |
Wheel speed sensor supply voltage (RR) |
16.8 mA |
250 mΩ |
| 27 |
Wheel speed sensor supply voltage (FR) |
16.8 mA |
250 mΩ |
| 28 |
Wheel speed sensor supply voltage (FL) |
- |
250 mΩ |
| 29 |
- |
16.8 mA |
250 mΩ |
| 30 |
Voltage supply for solenoid valves |
30A |
|
| 31 |
- |
- |
10 mΩ |
| 32 |
- |
Open drain |
|
| 33 |
- |
- |
|
| 34 |
Auto holding ON/OFF switch signal |
10 mA |
250 mΩ |
| 35 |
Brake light switch |
10 mA |
250 mΩ |
| 36 |
- |
- |
- |
| 37 |
IGN 1 |
5A |
250 mΩ |
| 38 |
- |
- |
- |
| 39 |
- |
- |
- |
| 40 |
- |
- |
- |
| 41 |
Wheel speed sensor ground (RL) |
30 mA |
- |
| 42 |
Wheel speed sensor ground (RR) |
30 mA |
- |
| 43 |
- |
- |
- |
| 44 |
Wheel speed sensor ground (FL) |
30 mA |
250 mΩ |
| 45 |
Wheel speed sensor ground (FR) |
30 mA |
250 mΩ |
| 46 |
Recirculation pump ground |
40A |
250 mΩ |
