Repair Procedures: Adjustment

Perform diagnostic procedure by using diagnostic device as shown below:

1. Connect self-diagnosis connector (16pins) located under the driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
2. Select the "vehicle model" and "ESP/ESC" on GDS vehicle selection screen, then select OK.

   [Variant Code Reset]

   Courtesy of HYUNDAI MOTOR AMERICA

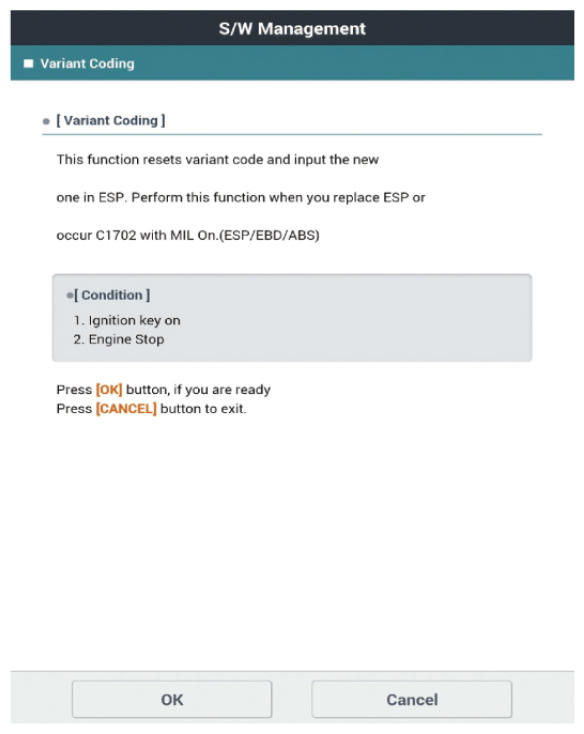

   [Variant Coding]

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

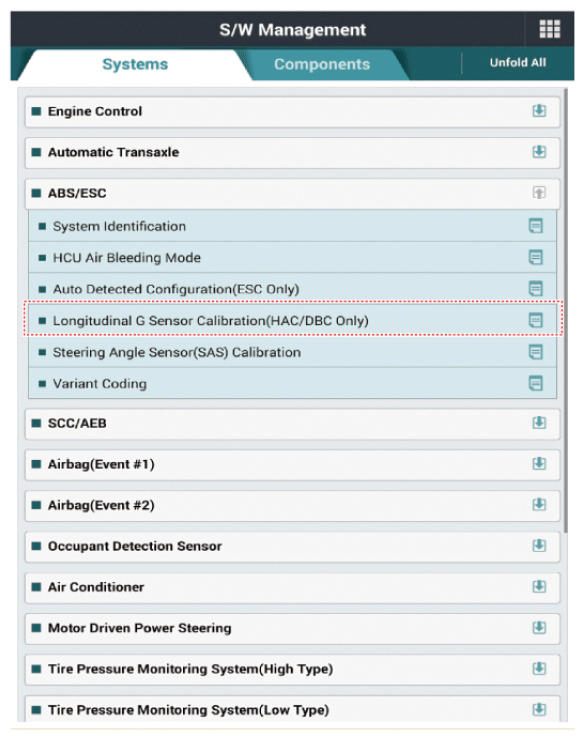

   [Longitudinal G Sensor Calibration]

   Courtesy of HYUNDAI MOTOR AMERICA

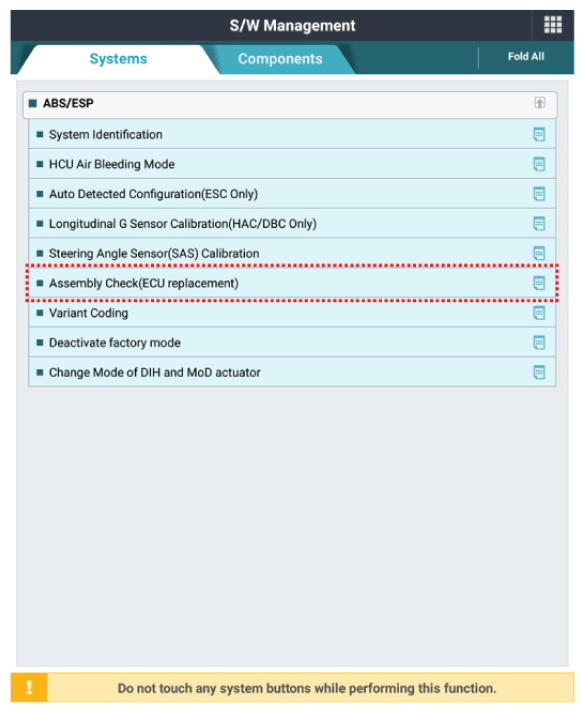

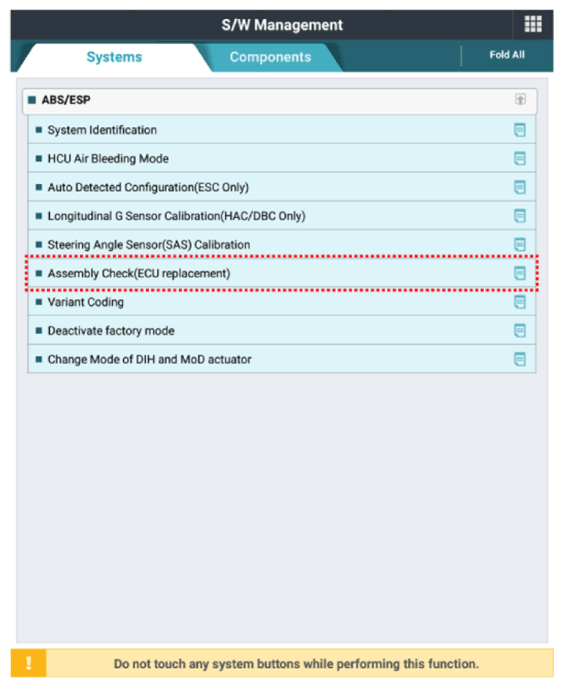

   Assembly Check (ECU replacement)

   Courtesy of HYUNDAI MOTOR AMERICA
