Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & engine "OFF".
  3. Select "Current Data" mode and monitor "Inhibitor switch" parameter.
  4. Change a shift lever from P-range to D-range.

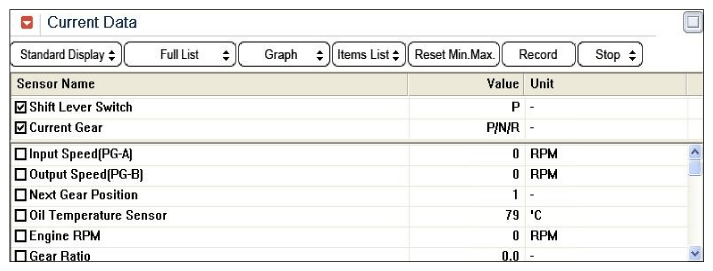

    Fig 1: Scantool Display - P Range
    G12066962Courtesy of HYUNDAI MOTOR AMERICA

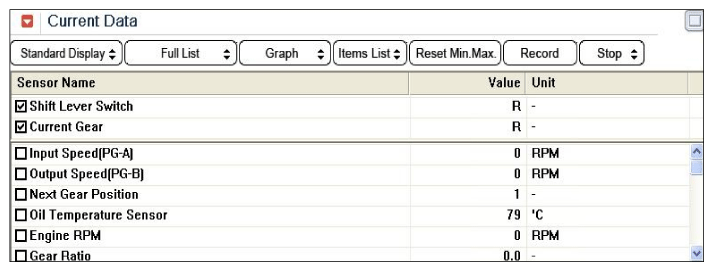

    Fig 2: Scantool Display - R Range
    G12066963Courtesy of HYUNDAI MOTOR AMERICA

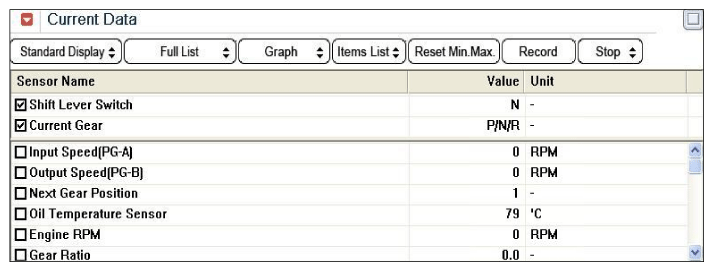

    Fig 3: Scantool Display - N Range
    G12066964Courtesy of HYUNDAI MOTOR AMERICA

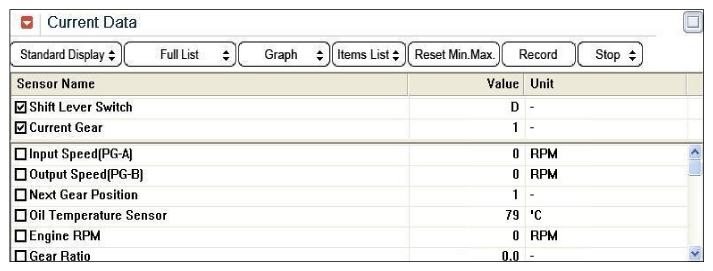

    Fig 4: Scantool Display - D Range
    G12066965Courtesy of HYUNDAI MOTOR AMERICA
  5. Is the Inhibitor switch value changed in specification?

    YES

    • P0705 can be happened When Shift Cable alignment is not correct between TGS Lever and Transmission Range Sensor. So do not replace "Inhibitor Switch" and Check the Alignment of Shift Cable.

    NO
