Shift Cable Alignment Inspection

■ Check the Alignment of Shift Cable

1. Move TGS lever to "N" position. And unfasten Shift cable - Manual Control Lever nut and Transmission Range sensor 2 bolts.
2. Set Manual Control Lever in "N" position.

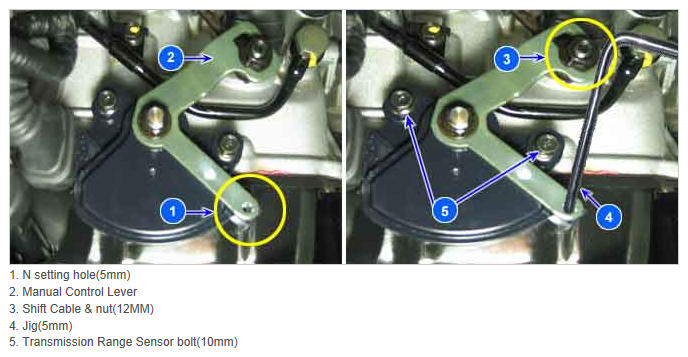

   Fig 1: Locating N Setting Hole, Manual Control Lever, Transmission Range Sensor Bolt, Jig And Shift Cable Or Nut

   Courtesy of HYUNDAI MOTOR AMERICA
3. Insert "N setting Jig ( 5)" into the "N setting hole"
4. Fasten the Shift cable - Manual Control Lever nut and Transmission Range sensor 2 bolts.

   * Beware of pull or push between Shift Cable and Manual Control Lever.

5. Remove the Jig from "N setting hole"

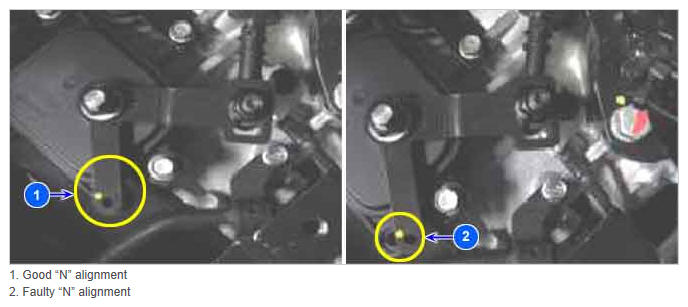

   Fig 2: Proper And Improper Alignment Positions

   Courtesy of HYUNDAI MOTOR AMERICA
6. Is the problem solved?

   YES

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Go to "WIRING INSPECTION " procedure.
