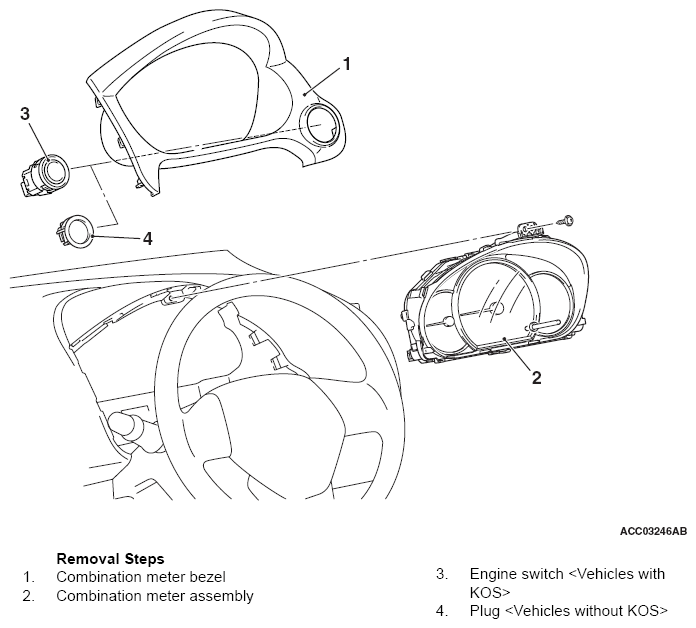

Removal And Installation
WARNING: This page is about a different car, the 2014 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
When the combination meter is required to be replaced, the current driving distance and number of elapsed days must be entered into the meter after the replacement in order to be used for service reminder function. Therefore, read "Integrated mileage for reminder," "Integrated days for reminder," "Mileage until Extra reminder," "Months until Extra reminder," and "Current Schedule" from the meter before the replacement using the special function of scan tool (M.U.T.-III), and note them. For the operation method of scan tool (M.U.T.-III), refer to FUEL LEVEL SENSOR FLOAT ID3964698HEIGHT
. If "Integrated mileage for reminder" or "Integrated days for reminder" cannot be read by the scan tool (M.U.T.-III), follow the method described below.
- For the driving distance for check warning, use the driving distance displayed on the multi information display.
- For the elapsed days for check warning, calculate the number of elapsed days from the delivery date to the customer (service remainder function start date) and current date.
