Fuel Level Sensor Float Height

WARNING: This page is about a different car, the 2014 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fuel pump module (Refer to ON-VEHICLE SERVICE ).

When float is moved to contact the float arm on the stopper, ensure that stopper positions "F" (height A) and "E" (height B) are within the standard value.

FUEL LEVEL SENSOR FLOAT HEIGHT STANDARD VALUE DESCRIPTION

Float position	Float height {mm (in)}
Stopper position "F" (height A)	135.4 ± 5.0 (5.3 ± 0.2)
Stopper position "E" (height B)	14.9 ± 5.0 (0.6 ± 0.2)

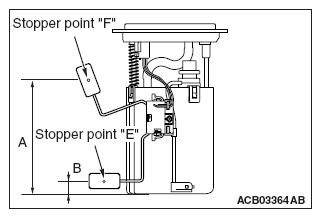

Fig 1: Checking Fuel Level Sensor Float Height

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
