Changing the Shift Cable

Remove the floor console assembly.
(Refer to the CONSOLE .)

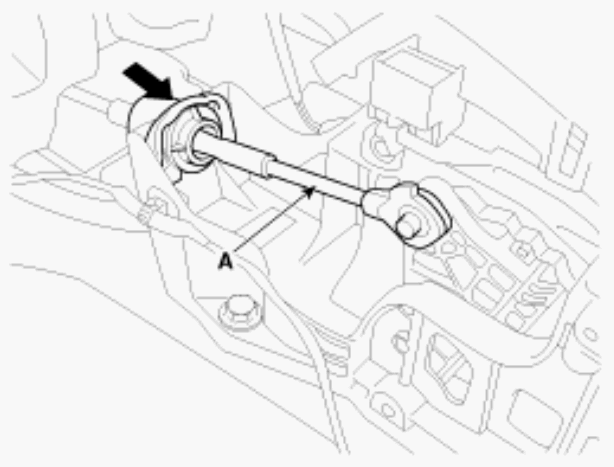

Remove the control cable (A).

Fig 1: Removing Control Cable
Courtesy of HYUNDAI MOTOR AMERICA

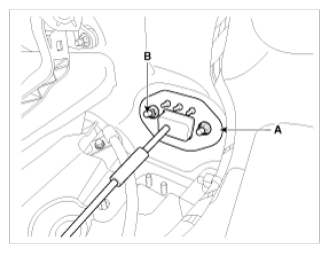

Remove the retainer (A) and nut (B).
Tightening torque:

11.8 ~ 14.7 N.m (1.2 ~ 1.5 kgf.m, 8.7 ~ 10.8 lb-ft)

Fig 2: Identifying Shift Cable Retainer And Nuts
Courtesy of HYUNDAI MOTOR AMERICA

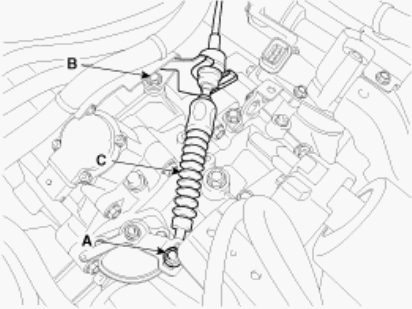

Remove the cable (B) from the cable bracket (A) on the A/T.
Remove the nut (C) from the manual control lever.
Remove the shift cable by pulling it toward the interior.
Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)

Fig 3: Identifying A/T Cable, Bracket And Mounting Nut
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Install the cable after placing the shift lever and the transmission manual control lever in the N position.
- Adjust the control cable.
  (Refer to the Adjusting the Control Cable .)
