Adjusting the Control Cable

  1. Place the shift lever in the interior, and the transmission manual control lever, to the N position.
  2. Connect the shift lever (A) in the interior with the control cable (B).
    Fig 1: Connecting Shift Lever In Interior With Control Cable
    G08812086Courtesy of HYUNDAI MOTOR AMERICA
  3. Lightly push the shift cable towards F to tighten the cable.
  4. Tighten the nut (A) to the specified torque.

    Tightening torque:

    9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)

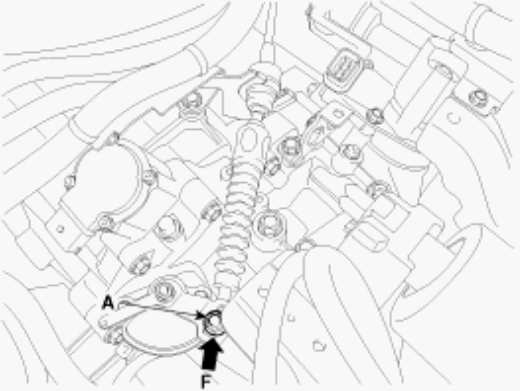

    Fig 2: Locating Shift Cable Mounting Nut
    G08812087Courtesy of HYUNDAI MOTOR AMERICA
