Component Inspection

■ Check power seat recline switch

1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF"
3. Monitor the "RECLINE FORWARD (BACKWARD) SW" Parameter on the Scantool. While operating power seat Recline switch.

   Specification  : Refer the specifications in Fig.1), Fig.2)

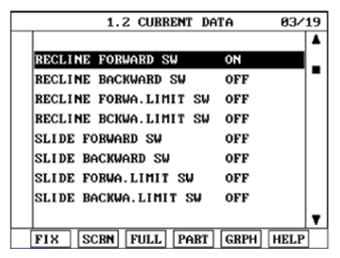

   Fig 1: Scantool Display - power seat Recline Switch On Current Data (Forward)

   Courtesy of HYUNDAI MOTOR CO.

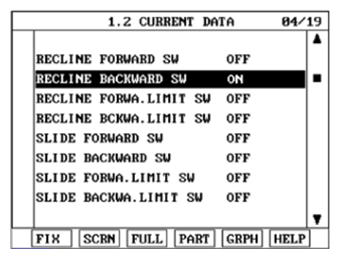

   Fig 2: Scantool Display - power seat Recline Switch On Current Data (Backward)

   Courtesy of HYUNDAI MOTOR CO.
4. Is the measured current data within specifications?

   YES

   • Go to  1 Check power seat recline motor procedure.

   NO

   • Substitute with a known-good power seat recline switch and check for proper operation. If the problem is corrected, replace power seat recline switch and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

■ Check power seat recline motor

1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF"
3. Select "ACTUATION TEST" mode on scantool and press [F1] to start

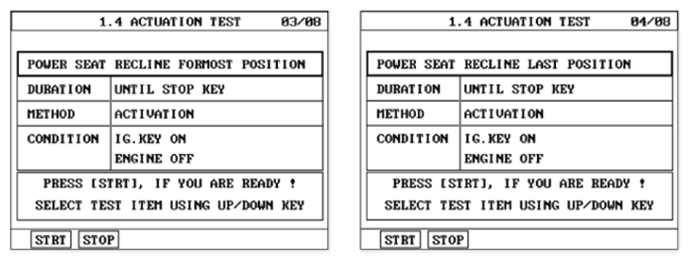

   Fig 3: Scantool Display - Actuation Test Screen

   Courtesy of HYUNDAI MOTOR CO.
4. Dose power seat recline motor work properly?

   YES

   • Go to  1 Check power seat recline sensor procedure.

   NO

   • Substitute with a known-good power seat recline motor and check for proper operation. If the problem is corrected, replace power seat recline motor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

■ Check power seat recline sensor

1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF"
3. Monitor the "RECLINE POSITION" Parameter on the Scantool. While operating power seat Recline switch.

   Specification  : Refer the specifications in Fig.5)

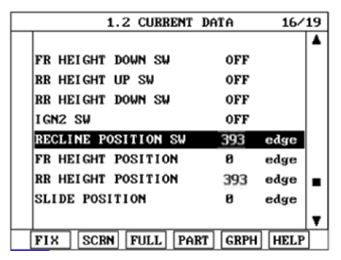

   Fig 4: Scantool Display - power seat Recline Position On Current Data

   Courtesy of HYUNDAI MOTOR CO.

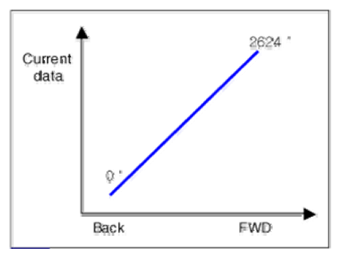

   Fig 5: power seat Recline Sensor Graph

   Courtesy of HYUNDAI MOTOR CO.
4. Is the measured voltage within specifications in Fig.5)?

   YES

   • Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known-good power seat recline motor and check for proper operation. If the problem is corrected, replace power seat recline motor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
