Monitor Scantool Data

Connect scantool to Data Link Connector ( DLC).
Ignition "ON" & Engine "ON".
Turn the steering wheel to the left or right until can't turn the steering wheel any more.
Monitor the "steering sensor" parameters on the Scantool.

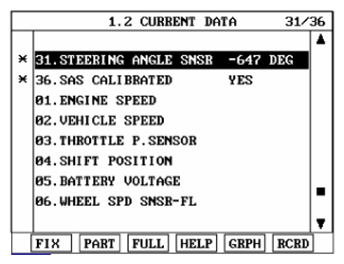

Fig 1: Monitoring Steering Sensor Parameters On Scantool - Ignition ON And Engine ON Normal Data ( Right Side)
Courtesy of HYUNDAI MOTOR CO.

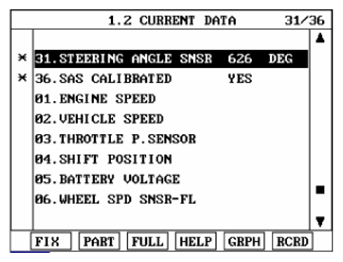

Fig 2: Monitoring Steering Sensor Parameters On Scantool - Ignition ON And Engine ON Normal Data ( Left Side)
Courtesy of HYUNDAI MOTOR CO.

Normal data ( Right side)

Normal data ( Left side)
Is parameter displayed within specifications?
YES
- Fault is caused by having been repaired and HECU memory was not cleared. Clear the DTC and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "COMPONENT INSPECTION " procedure.
