Signal Circuit Inspection
- Ignition "ON" & Engine "OFF".
- Disconnect the "OUTPUT SPEED SENSOR" connector

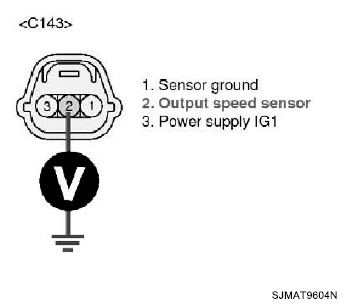

- Measure voltage between terminal "2" of the OUTPUT SPEED SENSOR harness connector and chassis ground.
Specification : Approx. 5V
- Is voltage within specifications?
YES
- Go to "POWER CIRCUIT INSPECTION " procedure.
NO
- Check for open or short in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- If signal circuit in harness is OK, Go to "CHECK PCM/TCM " of the "Component Inspection" procedure.
