Power Circuit Inspection

Ignition "ON" & Engine "OFF".
Disconnect the "OUTPUT SPEED SENSOR" connector
Measure voltage between terminal "3" of the OUTPUT SPEED SENSOR harness connector and chassis ground.
Specification : Approx. B+

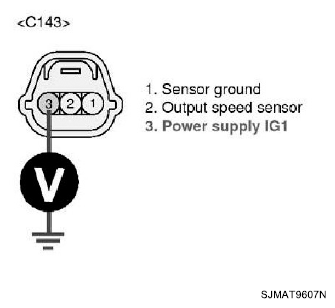

Fig 1: Measuring Voltage Between Terminal 3 Of Output Speed Sensor Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is voltage within specifications?
YES
- Go to "GROUND CIRCUIT INSPECTION " procedure.
NO
- Check for open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
