Ground Circuit Inspection

Ignition "ON" & Engine "OFF".
Disconnect the "OUTPUT SPEED SENSOR" connector
Measure resistance between terminal "1" of the OUTPUT SPEED SENSOR harness connector and chassis ground.
Specification : Approx. 0 Ω

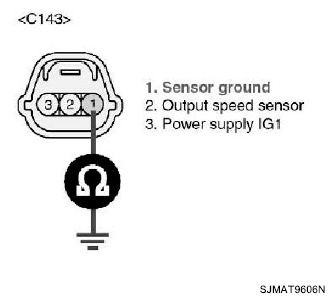

Fig 1: Measuring Resistance Between Terminal 1 Of Output Speed Sensor Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is resistance within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Check for open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- If ground circuit in harness is OK, Go to "CHECK PCM/TCM " of the "Component Inspection" procedure.
