Signal Circuit Inspection

Measure resistance between each terminal of sensor harness connector and TCM (PCM) harness connector as below.

TERMINAL RANGE REFERENCE

Pin No of "Transaxle Range Switch"	C108 No 1	C108 No 3	C108 No 4	C108 No 7
Pin No of "TCM (PCM)" harness	C130-A No 6	C130-A No 3	C130-A No 5	C130-A No 4
Specification	0Ω	0Ω	0Ω	0Ω

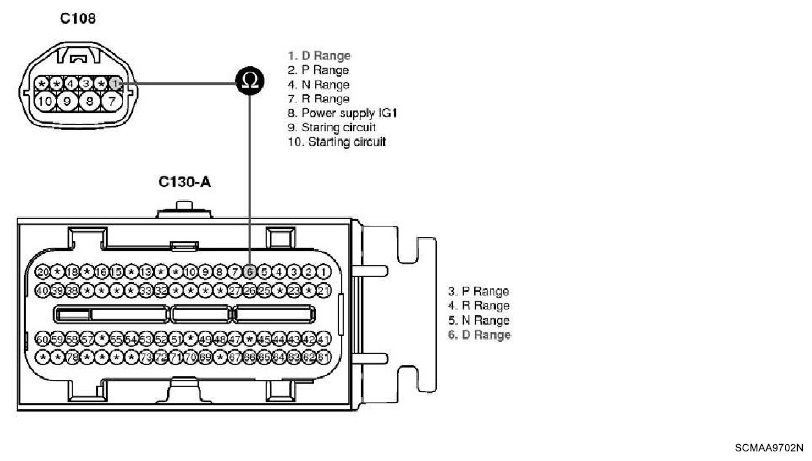

Fig 1: Measuring Resistance Between Terminal Of Sensor Harness Connector And TCM (PCM) Harness Connector

Courtesy of HYUNDAI MOTOR CO.

Is resistance within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Check for Open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
