Component Inspection

  1. Ignition "OFF".
  2. Remove "TRANSAXLE RANGE SWITCH".
  3. Measure the resistance between each terminal of the sensor.

    Specification  : Ω

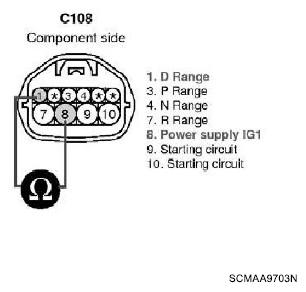

    Fig 1: Measuring Resistance Between Terminal Of Sensor
    G06219922Courtesy of HYUNDAI MOTOR CO.

    [Range Switch Continuity Check Table (Case Of Sports Mode Vehicle Has No 3, 2, L Range)]

    TERMINAL RANGE REFERENCE

    Range Terminal
    P R N D 3 2 L
    1       •
    2           •
    3 •
    4     •
    5         •   •
    6
    7   •
    8 • • • • • • •
    9 •   •
    10 •   •
  4. Is resistance within specifications?

    YES

    • Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
