Lower Panel Replacement

WARNING: This page is about a different car, the 2009 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crash pad side cover. (Refer to COVER REPLACEMENT  )
  2. Remove the keyset bezel.
  3. After loosening the crash pad lower panel mounting screws, then remove the lower panel (A).

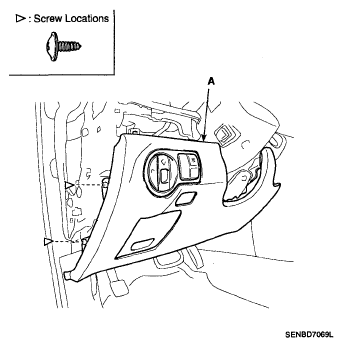

    Fig 1: Identifying Lower Panel
    G05331122Courtesy of HYUNDAI MOTOR CO.
  4. After loosening the mounting bolts, then remove the reinforcing panel (A).

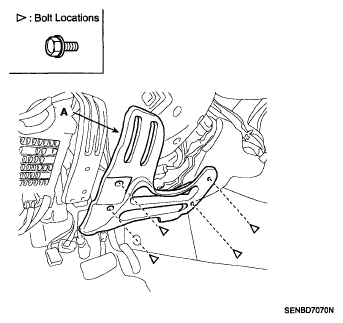

    Fig 2: Identifying Reinforcing Panel
    G05331123Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
