Cover Replacement

WARNING: This page is about a different car, the 2009 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Remove the crash pad side cover (A).

    2. DRIVER'S

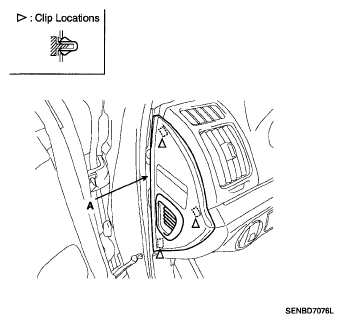

    Fig 1: Identifying Crash Pad Side Cover
    G05331129Courtesy of HYUNDAI MOTOR CO.

    PASSENGER'S

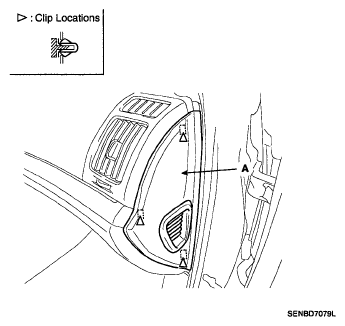

    Fig 2: Identifying Crash Pad Side Cover (Passenger)
    G05331132Courtesy of HYUNDAI MOTOR CO.
  2. Installation is the reverse of removal.
