Shift Lever: Installation

Install the retainer (A) and nuts (B).
TORQUE : 12-15 Nm (1.2-1.5 kgf.m, 8.7-10.8 lb-ft)

Fig 1: Identifying Retainer And Nuts
Courtesy of HYUNDAI MOTOR CO.

NOTE: In case, install the crash pad and cowl cross bar. (refer to CRASH PAD and HEATER UNIT )
Install the shift lever assembly (A).
TORQUE : 9-14 Nm (0.9-1.4kgf.m, 6.5-10.1 lb-ft)

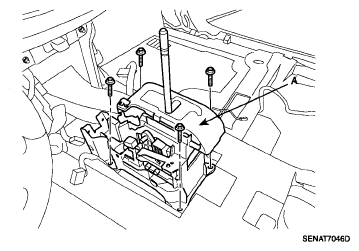

Fig 2: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
Connect the interlock switch connector (A).

Fig 3: Identifying Interlock Switch Connector
Courtesy of HYUNDAI MOTOR CO.
Install the shift cable assembly (C) by installing the clamp (A) and the snap pin (B).

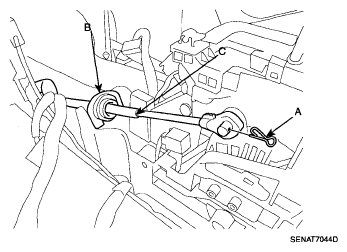

Fig 4: Identifying Shift Cable Assembly And Snap Pin
Courtesy of HYUNDAI MOTOR CO.
Install the center console, (refer to CONSOLE )
Install the center console cover (A).

Fig 5: Identifying Center Console Cover
Courtesy of HYUNDAI MOTOR CO.
Install the shift lever knob (A).

Fig 6: Identifying Shift Lever Knob
Courtesy of HYUNDAI MOTOR CO.

NOTE: Before completing installation, adjust the shift cable referring to ADJUSTMENT .
Install the shift cable assembly to transaxle. (refer to INSTALLATION )
