Automatic Transaxle: Installation

  1. After fitting the transaxle assembly into the engine assembly by using a jack, install the five transaxle lower mounting bolts (A).

    TORQUE: 40-47 Nm (4.0-4.7 kgf.m, 28.9-34.0 lb-ft)

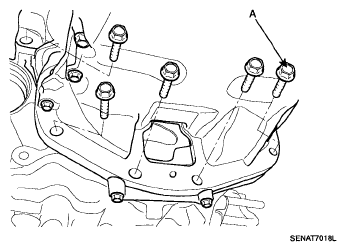

    Fig 1: Identifying Five Transaxle Lower Mounting Bolts
    G05330317Courtesy of HYUNDAI MOTOR CO.
  2. Install the starter motor mounting bolt (A) and the transaxle mounting bolt (B).

    TORQUE:

    [A] : 33-50 Nm (3.3-5.0 kgf.m, 23.9-36.1 lb-ft)

    [B]: 80-100 Nm (8-10 kgf.m, 57.9-72.3 lb-ft)

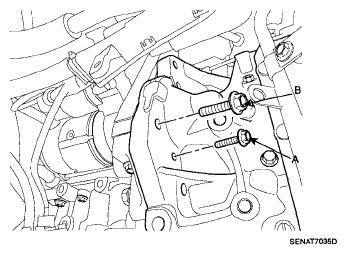

    Fig 2: Identifying Starter Motor Mounting Bolt
    G05330316Courtesy of HYUNDAI MOTOR CO.
  3. Install the six drive plate mounting bolts (A) by rotating the timing gear.

    TORQUE: 46-53 Nm (4.6-5.3 kgf.m, 33.3-38.3 lb-ft)

    CAUTION: Be sure to tighten the bolts with the specified torque.
    Fig 3: Identifying Drive Plate Mounting Bolts
    G05330315Courtesy of HYUNDAI MOTOR CO.
  4. Install the dust cover (A).
    Fig 4: Identifying Dust Cover
    G05330314Courtesy of HYUNDAI MOTOR CO.
  5. Install the transaxle mounting bolt near the driveshaft hole from engine side.

    TORQUE : 80-100 Nm (8-10 kgf.m, 57.9-72.3 lb-ft)

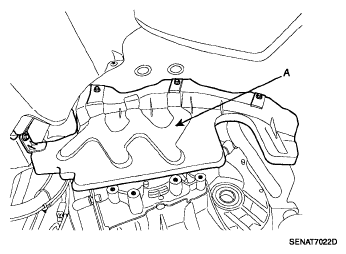

  6. Install the side mud cover (A).
    Fig 5: Identifying Side Mud Cover
    G05330308Courtesy of HYUNDAI MOTOR CO.

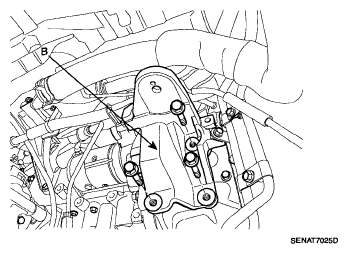

  7. After installing the font mounting bracket (B) by removing the three bolts, install the vacuum tube mounting bolt (A).
    Fig 6: Identifying Font Mounting Bracket Bolts
    G05330311Courtesy of HYUNDAI MOTOR CO.

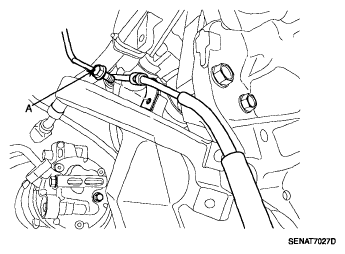

    Fig 7: Identifying Vacuum Tube Mounting Bolt
    G05330310Courtesy of HYUNDAI MOTOR CO.

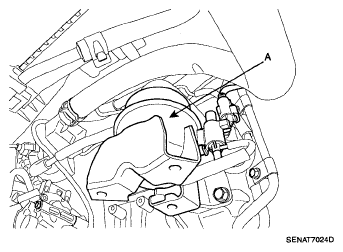

  8. After installing the font roll mounting bracket assembly (A), connect the vacuum tube and the connector.
    Fig 8: Identifying Font Roll Mounting Bracket Assembly
    G05330309Courtesy of HYUNDAI MOTOR CO.
  9. Install the rear roll mounting bracket assembly (A) by installing the four bolts.

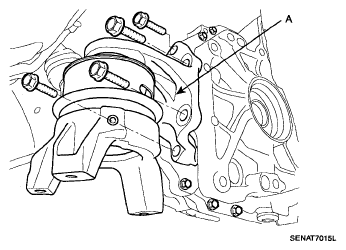

    Fig 9: Identifying Rear Roll Mounting Bracket Assembly
    G05330312Courtesy of HYUNDAI MOTOR CO.
  10. Install the transaxle oil cooler hose (A).
    Fig 10: Identifying Transaxle Oil Cooler Hose
    G05330313Courtesy of HYUNDAI MOTOR CO.
  11. In case of 4WD, install the transfer case assembly, (refer to TRANSFER CASE'S INSTALLATION )
  12. Connect the left driveshaft (A) to the transaxle.

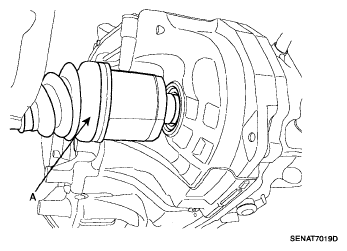

    Fig 11: Identifying Left Driveshaft To Transaxle
    G05330305Courtesy of HYUNDAI MOTOR CO.
  13. Install the inner shaft (B) by installing the three mounting bolts and connect the right driveshaft (A) into the inner shaft.
    NOTE: In case of 2WD, install the inner shaft and the right driveshaft as an assembly.

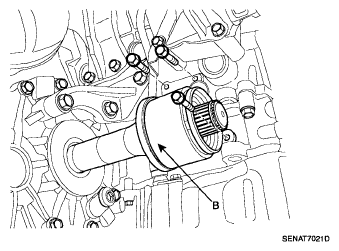

    Fig 12: Identifying Right Driveshaft From Inner Shaft And Mounting Bolts (1 Of 2)
    G05330307Courtesy of HYUNDAI MOTOR CO.

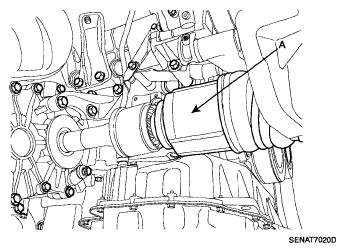

    Fig 13: Identifying Right Driveshaft From Inner Shaft And Mounting Bolts (2 Of 2)
    G05330306Courtesy of HYUNDAI MOTOR CO.

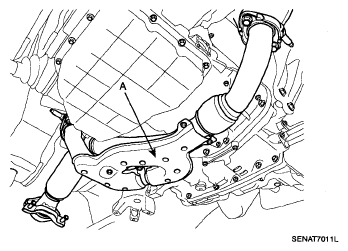

  14. Install the front muffler (A).
    Fig 14: Identifying Front Muffler
    G05330304Courtesy of HYUNDAI MOTOR CO.
  15. Support the subframe with a jack and the Special tool (09624-38000).
  16. Install the powersteering pressure tube (A) to the powersteering oil pump by installing the l-type bolt.
    Fig 15: Identifying Powersteering Pressure Tube And L-Type Bolt
    G05330303Courtesy of HYUNDAI MOTOR CO.
  17. Install the mounting bolts. (refer to FRONT STABILIZER BAR or REAR STABILIZER BAR )
  18. Remove the roll stopper mounting bolts (A, B).

    TORQUE : 90-110 Nm (9-11 kgf.m, 65.1-79.5 lb-ft)

    Fig 16: Identifying Roll Stopper Mounting Bolts (1 Of 2)
    G05330300Courtesy of HYUNDAI MOTOR CO.
    Fig 17: Identifying Roll Stopper Mounting Bolts (2 Of 2)
    G05330334Courtesy of HYUNDAI MOTOR CO.
  19. Remove the muffler hanger rubber (A).
    Fig 18: Identifying Muffler Hanger Rubber
    G05330302Courtesy of HYUNDAI MOTOR CO.
  20. Remove the lower arm ball joint mounting nut, the stabilizer link mounting nut, and the tie rod end mounting nut from the front knuckles, (refer to FRONT SUSPENSION SYSTEM )
  21. Install the steering joint bolt (A).
    Fig 19: Identifying Steering Joint Bolt
    G05330298Courtesy of HYUNDAI MOTOR CO.
  22. Connect the return hose (A) to the tube by tightening the clamp.
    Fig 20: Identifying Drain Powersteering Fluid Hose And Clamp
    G05330299Courtesy of HYUNDAI MOTOR CO.
  23. Install the under shield cover (A).
    Fig 21: Identifying Under Shield Cover
    G05330297Courtesy of HYUNDAI MOTOR CO.
  24. Lower the vehicle.
  25. Install the front wheels and tires, (refer to DRIVESHAFT )
  26. Connect the power steering pressure sensor (A).
    Fig 22: Identifying Power Steering Pressure Sensor
    G05330296Courtesy of HYUNDAI MOTOR CO.

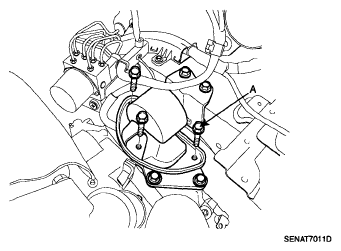

  27. Install the transaxle support bracket bolts (A).

    TORQUE : 90-110 Nm (9-11 kgf.m, 65.1-79.5 lb-ft)

    Fig 23: Identifying Transaxle Support Bracket And Bolts
    G05330295Courtesy of HYUNDAI MOTOR CO.
  28. Install the four transaxle upper mounting bolts (A) and the starter motor mounting bolt (B).

    TORQUE:

    [A]: 65-85 Nm (6.5-8.5 kgf.m, 47.0-61.5 lb-ft)

    [A']: 43-55 Nm (4.3-5.5 kgf.m, 31.1-39.8 lb-ft)

    [B]: 43-55 Nm (4.3-5.5 kgf.m, 31.1-39.8 lb-ft)

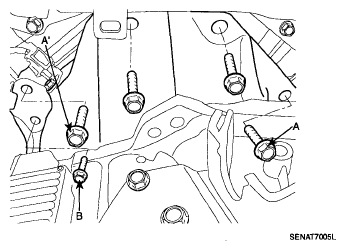

    Fig 24: Identifying Transaxle Upper Mounting Bolts
    G05330294Courtesy of HYUNDAI MOTOR CO.
  29. Remove the special tool (09200-38001).

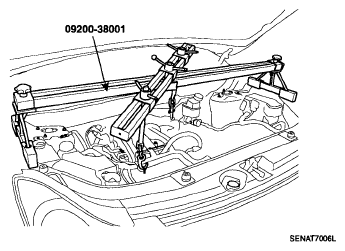

    Fig 25: Identifying Special Tools (09200-38001)
    G05330293Courtesy of HYUNDAI MOTOR CO.

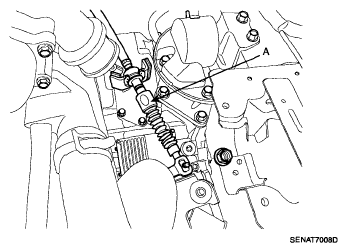

  30. Install the shift cable assembly (A).

    TORQUE : 8-12 Nm (0.8-1.2 kgf.m, 5.8-8.7 lb-ft)

    NOTE: Adjust the shift cable referring to ADJUSTING THE SHIFT CABLE .
    Fig 26: Identifying Shift Cable Assembly
    G05330292Courtesy of HYUNDAI MOTOR CO.
  31. Install the ground cable (A) to transaxle.

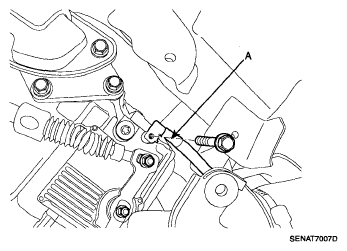

    Fig 27: Identifying Ground Cable From Transaxle
    G05330291Courtesy of HYUNDAI MOTOR CO.
  32. Connect the TCU connector (A) and install the CKP sensor (B).
    Fig 28: Identifying TCU Connector And CKP Sensor
    G05330290Courtesy of HYUNDAI MOTOR CO.

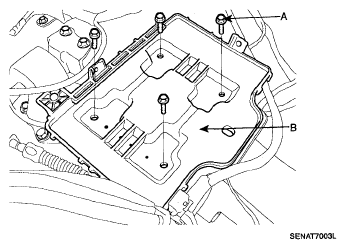

  33. Install the battery tray (B) by Installing the four bolts (A).
    Fig 29: Identifying Battery Tray And Bolts
    G05330289Courtesy of HYUNDAI MOTOR CO.
  34. Installing the air cleaner assembly (C) by connecting the AFS (Air Flow Sensor) connector (A) and tightening the clamp (B).

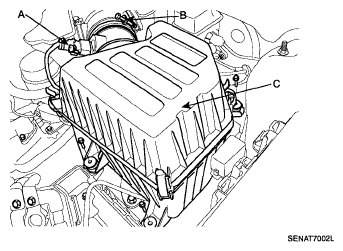

    Fig 30: Identifying Air Cleaner Assembly And Clamp
    G05330288Courtesy of HYUNDAI MOTOR CO.

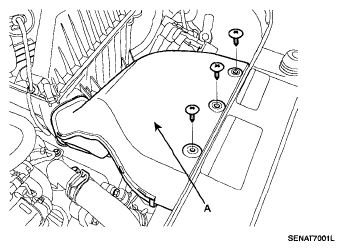

  35. Install the air duct (A).
    Fig 31: Identifying Air Duct
    G05330287Courtesy of HYUNDAI MOTOR CO.
  36. Install the battery after installing the three nuts (A, B, C) in order.
    Fig 32: Identifying Battery And Nuts
    G05330286Courtesy of HYUNDAI MOTOR CO.
  37. Install the engine cover. (refer to ENGINE AND TRANSAXLE ASSEMBLY )
  38. Refill the automatic transaxle fluid, (refer to INSPECTION AND ADJUSTMENT )
  39. Refill the powersteering fluid, (refer to POWER STEERING GEAR BOX )
  40. When replacing the automatic transaxle assembly, after initializing the TCU, perform N position learning and initial learning, (refer to 'HOW TO PERFORM N POSITION LEARNING ' and 'HOW TO PERFORM INITIAL LEARNING ')
