Out Side Handle Replacement

Remove the following parts.
- Remove the front door trim (See FRONT DOOR TRIM REPLACEMENT ).
- Remove the glass (See GLASS REPLACEMENT ).
- Remove inside handle (See INSIDE HANDLE REPLACEMENT ).

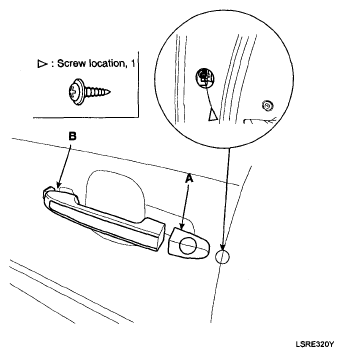

After disconnecting the cover (A), remove the outside handle base (B).

Fig 1: Identifying Cover, Outside Handle Base With And Mounting Screw Location
Courtesy of HYUNDAI MOTOR CO.
Remove door module (See FRONT DOOR MODULE ).
Installation is the reverse of removal.
