Front Door Module

  1. Remove the front door trim (See FRONT DOOR TRIM REPLACEMENT ).
  2. Remove the glass (See GLASS REPLACEMENT ).
  3. Remove the inside handle (See INSIDE HANDLE REPLACEMENT ).
  4. Remove the outside handle (See OUT SIDE HANDLE REPLACEMENT ).
  5. After loose the door module mounting bolts, remove the door module (A).

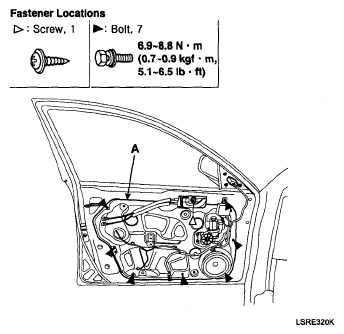

    Fig 1: Door Module And Fastener Location With Torque Specifications
    G04892816Courtesy of HYUNDAI MOTOR CO.
  6. Installation is the reverse of removal.
NOTE:
  • Make sure the connector is plugged in properly and each rod is connected securely.
  • Make sure the door locks and opens properly.
