Seat Track Replacement

  1. Remove the recliner cover (See RECLINER COVER REPLACEMENT  ).
  2. Remove the seat cushion cover (See SEAT CUSHION COVER REPLACEMENT  ).
  3. Remove the track (B).

    DRIVE'S

    Fig 1: Identifying Track
    G04881230Courtesy of HYUNDAI MOTOR CO.

    PASSENGER'S

    • Remove the PODS(A) (See RESTRAINTS ).

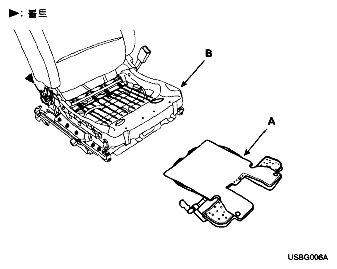

      Fig 2: Identifying PODS
      G04881231Courtesy of HYUNDAI MOTOR CO.
    • Installation is the reverse of removal.
